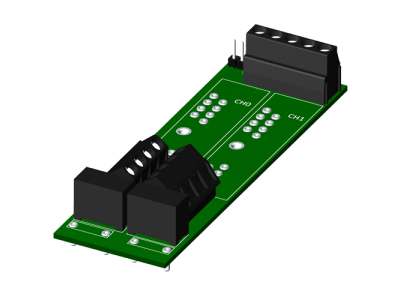

The SCMPB04 is a dual channel mounting panels for the SCM5B modules. It is available for DIN rail mounting.
The SCM5B30 voltage input module provides a single channel of analog input which is filtered, isolated, amplified and converted to a high-level voltage output. These modules can share a common analog bus with external multiplexers.
The SCM5B31 voltage input module provides a single channel of analog input which is filtered, isolated, amplified and converted to a high-level voltage output. These modules can share a common analog bus with external multiplexers.

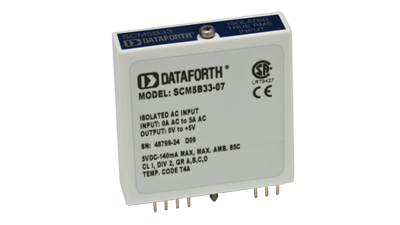

The SCM5B33 voltage input module provides a single channel of AC input which is converted to RMS DC, filtered, isolated, amplified and converted to a standard voltage or current output.
The SCM5B34 RTD input module provides a single channel of RTD input which is filtered, isolated, amplified, linearized and converted to a high-level analog voltage output.
The SCM5B37 thermocouple input module provides a single channel of thermocouple input which is filtered, isolated, amplified and converted to a high-level analog voltage output.
The SCM5B38 wide-bandwidth input module provides a single channel of strain gauge input which is filtered, isolated, amplified and converted to a high-level analog voltage output. These modules can share an analog bus without external multiplexers.
The SCM5B39 current output module provides a single channel of analog output. The track-and-hold circuit in the input stage can be operated in a hold or track mode where one DAC can supply one or many output modules.
