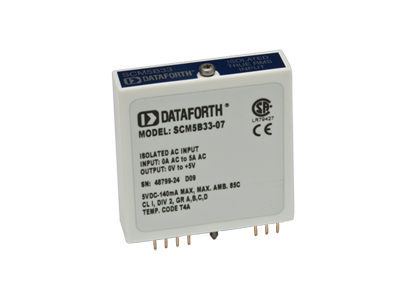

SCM5B38-W

Strain Gauge Input Analog Modular Signal Conditioner

Dataforth

Strain Gauge Input Module
1500 V Transformer Isolation
Accuracy: ± 0.03%
Module
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 240 V AC Continuous

Specifications

Family

Dataforth 5B

Input Type

Strain Gauge

# of Inputs

1

Output Type

±5 V DC
±10 V DC

Bandwidth

10 kHz

Excitation

3.33 V DC
10 V DC

Isolation

Yes

Supply Power

5 V DC

Models

SCM5B38-01

Full Bridge, ± 10 mV Input, ± 5 V DC Output

SCM5B38-01D

Full Bridge, ± 10 mV Input, ± 10 V DC Output

SCM5B38-02

Full Bridge, ± 30 mV Input, ± 5 V DC Output

SCM5B38-02D

Full Bridge, ± 30 mV Input, ± 10 V DC Output

SCM5B38-03

Half Bridge, ± 10 mV Input, ± 5 V DC Output

SCM5B38-03D

Half Bridge, ± 10 mV Input, ± 10 V DC Output

SCM5B38-04

Half Bridge, ± 30 mV Input, ± 5 V DC Output

SCM5B38-04D

Half Bridge, ± 30 mV Input, ± 10 V DC Output

SCM5B38-05

Full Bridge, ± 20 mV Input, ± 5 V DC Output

SCM5B38-05D

Full Bridge, ± 20 mV Input, ± 10 V DC Output

SCM5B38-06

Full Bridge, ± 33.3 mV Input, ± 5 V DC Output

SCM5B38-06D

Full Bridge, ± 33.3 mV Input, ± 10 V DC Output

SCM5B38-07

Full Bridge, ± 100 mV Input, ± 5 V DC Output

SCM5B38-07D

Full Bridge, ± 100 mV Input, ± 10 V DC Output
