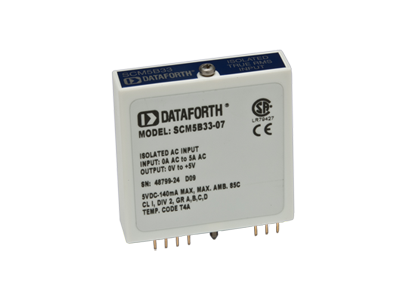

SCM5B33

True RMS Input Analog Modular Signal Conditioner

Dataforth

True RMS Input Module
1500 V Transformer Isolation
Accuracy: ± 0.03%
Module
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 480 V AC & DC Max

Details

The SCM5B33 voltage input module can be purchased in a broad number of ranges, providing t4he conversion of a single channel of AC input to RMS DC, filtered, isolated, amplified and converted to a standard voltage or current output signal.

The isolation is up to 1500 V peak, providing a boundary protection for measurement devices, that typically have limited Common Mode Voltage levels.

Specifications

Family

Dataforth 5B

Input Type

0 - 100 mV AC
0 - 1 V AC
0 - 10 V AC
0 - 150 V AC
0 - 300 V AC
0 - 1 A AC
0 - 5 A AC

# of Inputs

1

Output Type

0 - 5 V DC
0 - 10 V DC
0 - 1 mA
0 - 20 mA
4 - 20 mA

Isolation

Yes

Supply Power

5 V DC

Models

SCM5B33-01

0-100 mV AC Input, 0-5 V DC Output

SCM5B33-01B

0-100 mV AC Input, 0-1 mA Output

SCM5B33-01C

0-100 mV AC Input, 4-20 mA Output

SCM5B33-01D

0-100 mV AC Input, 0-10 V DC Output

SCM5B33-01E

0-100 mV AC Input, 0-20 mA Output

SCM5B33-02

0-1 V AC Input, 0-5 V DC Output

SCM5B33-02B

0-1 V AC Input, 0-1 mA Output

SCM5B33-02C

0-1 V AC Input, 4-20 mA Output

SCM5B33-02D

0-1 V AC Input, 0-10 V DC Output

SCM5B33-02E

0-1 V AC Input, 0-20 mA Output

SCM5B33-03

0-10 V AC Input, 0-5 V DC Output

SCM5B33-03B

0-10 V AC Input, 0-1 mA Output

SCM5B33-03C

0-10 V AC Input, 4-20 mA Output

SCM5B33-03D

0-10 V AC Input, 0-10 V DC Output

SCM5B33-03E

0-10 V AC Input, 0-20 mA Output

SCM5B33-04

0-150 V AC Input, 0-5 V DC Output

SCM5B33-04B

0-150 V AC Input, 0-1 mA Output

SCM5B33-04C

0-150 V AC Input, 4-20 mA Output

SCM5B33-04D

0-150 V AC Input, 0-10 V DC Output

SCM5B33-04E

0-150 V AC Input, 0-20 mA Output

SCM5B33-05

0-300 V AC Input, 0-5 V DC Output

SCM5B33-05B

0-300 V AC Input, 0-1 mA Output

SCM5B33-05C

0-300 V AC Input, 4-20 mA Output

SCM5B33-05D

0-300 V AC Input, 0-10 V DC Output

SCM5B33-05E

0-300 V AC Input, 0-20 mA Output

SCM5B33-06

0-1 A AC Input, 0-5 V DC Output

SCM5B33-06B

0-1 A AC Input, 0-1 mA Output

SCM5B33-06C

0-1 A AC Input, 4-20 mA Output

SCM5B33-06D

0-1 A AC Input, 0-10 V DC Output

SCM5B33-06E

0-1 A AC Input, 0-20 mA Output

SCM5B33-07

0-5 A AC Input, 0-5 V Output

SCM5B33-07B

0-5 A AC Input, 0-1 mA Output

SCM5B33-07C

0-5 A AC Input, 4-20 mA Output

SCM5B33-07D

0-5 A AC Input, 0-10 V DC Output

SCM5B33-07E

0-5 A AC Input, 0-20 mA Output
