SCM5B Signal Conditioner / Isolator Back Plane

1, 2, 4, 8 & 16 position Back Plane

Dataforth

  • Multiplexed and non-Multiplexed PCB's
  • 1, 2, 4, 8 & 10 position PCB's
  • 5 Vdc Power Supply required
  • Cold Junction Compensation (CJC - optional)

Specifications

Family
Dataforth 5B
# of Inputs
1
2
8
16
Output Type
0 - 5 V DC
±5 V DC
±10 V DC
Supply Power
5 V DC

Models

SCMPB01
Backpanel Analog I/O: 16 Ch, Continuous Output, Non Multiplexed, Dual 26 Pin connector, with CJC
SCMPB01-1
Backpanel Analog I/O: 16 Ch, Continuous Output, Non Multiplexed, Dual 26 Pin connector, No CJC
SCMPB01-2
Backpanel Analog I/O: 16 Ch, Continuous Output, Non Multiplexed, Dual 26 Pin connector, DIN Rail Mount, with CJC
SCMPB01-3
Backpanel Analog I/O: 16 Ch, Continuous Output, Non Multiplexed, Dual 26 Pin connector, No CJC, DIN Rail Mount
SCMPB03
5B Single channel backpanel
SCMPB04
5B Dual channel backpanel
SCMPB04-2
5B Dual channel backpanel, no CJC
SCMPB04-2
5B Dual channel backpanel, DIN rail mount
SCMPB04-3
5B Dual channel backpanel, DIN rail mount, no CJC
SCMPB07
5B Non-multiplexed, 8 channel backpanel
SCMPB07-2
5B Non-multiplexed, 8 channel backpanel with DIN rail mounting option
SCMPB07-3
5B Non-multiplexed, 8 channel backpanel, no CJC, with DIN rail mounting option

Downloads

SCM5B Signal Conditioning Backplanes & Accessories
Datasheet
SCM5baccs Single & Dual Channel 5B Mounting Panels
Datasheet
SCMPB07 8-Position 5B module Backpanel
Datasheet
SCMVAS High Voltage Attenuator System
Datasheet

Related

SCMPB-xx

These Back Planes can be panel mounted or DIN Rail mounted. These are available with Multiplexed output capability and Direct Analog non-Multiplexed outputs.

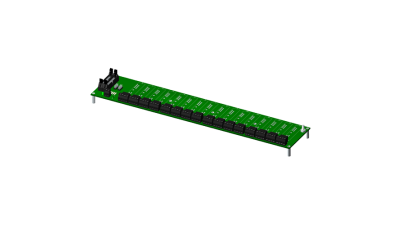

SCMPB02

The SCMPB02 backpanel can accept up to sixteen SCM5B modules in any combination. It can be mounted on the SCMXRK-002 19-inch metal rack. The SCMPB02 has two analog buses; one for analog input and one for analog output.

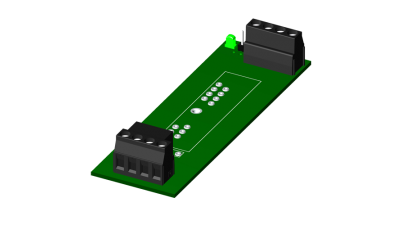

SCMPB03

The SCMPB03 is a single channel mounting panel for the SCM5B modules. It is available in DIN rail mounting.

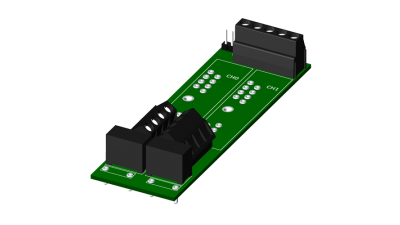

SCMPB04

The SCMPB04 is a dual channel mounting panels for the SCM5B modules. It is available for DIN rail mounting.

SCMPB05

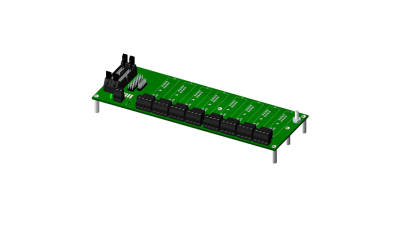

The SCMPB05 backpanel (Figure 12) can accept up to eight SCM5B analog input and/or output modules in any combination.

SCMPB06

The SCMPB06 backpanel can accept up to eight SCM5B modules in any combination. It can be mounted on the SCMXRK-002 19-inch metal rack. The SCMPB06 has two analog buses; one for analog input and one for analog output.

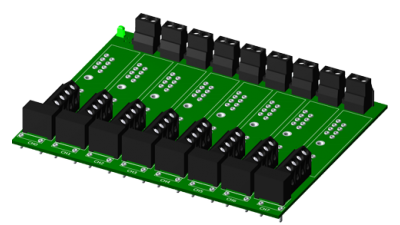

SCMPB07

The SCMPB07 8-channel high-density backpanel can accept any of the SCM5B analog modules in any mixture. Its overall width is 5.5 inches (139.7mm) versus 10 inches (254mm) for the SCMPB05 and SCMPB06 8-channel backpanels.
