SCMPB03

Single Module 5B Backplane

Dataforth

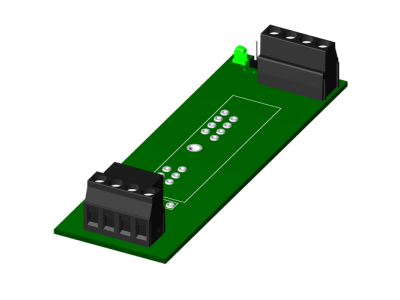

The SCMPB03 is a single channel mounting panel for the SCM5B modules. It is available in DIN rail mounting.

Specifications

Family
Dataforth 5B
Dataforth 7B
Input Type
0 - 10 mV DC
0 - 40 V DC
±10 V DC
0 - 10 V AC
4 - 20 mA
Strain Gauge
Frequency
# of Inputs
1
Output Type
0 - 10 V DC
Isolation
Yes

Models

SCMPB03
Single channel backpanel. No mounting hardware included
SCMPB03-2
Single channel backpanel with DIN rail mounting hardware. Shipped fully assembled.
