SCMPB06

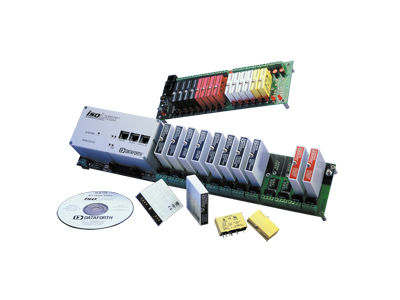

isoLynx Analog I/O Expansion

Dataforth

8 Module Slots
8 Analog I/O Channels
Expandable with SCMPB02/06 to 60 Analog I/O Channels
Expandable with SLX101 to 128 Digital I/O Channels
1500 Vrms Isolation
Panel or DIN Rail Mount
CE Compliant

Details

The SCMPB06 backpanel (Figure 14) can accept up to eight SCM5B modules in any combination. It can be mounted on the SCMXRK-002 19-inch metal rack. The SCMPB06 has two analog buses; one for analog input and one for analog output. This two-bus configuration takes advantage of the switch controlled outputs on the input modules and the track-and-hold inputs on the output modules. A temperature sensor is mounted on each channel to provide cold junction compensation for thermocouple input modules (see Figure 15 for schematic). Field connections are terminated with four screw terminals at each module site. Up to eight SCMPB06 backpanels may be daisy-chained. Use SCMXCA004-XX cable for daisy chaining and connecting to host computer.
