8B38

Strain Gauge Input Analog Signal Conditioner Modules

Dataforth

Strain Gauge Input Module
1500 V Transformer Isolation
Accuracy: ± 0.05%
Module
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 240 V AC Continuous

Specifications

Family

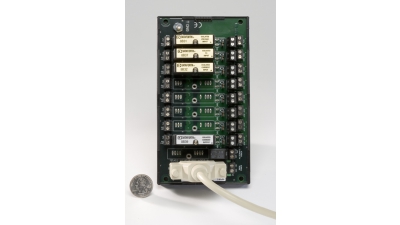

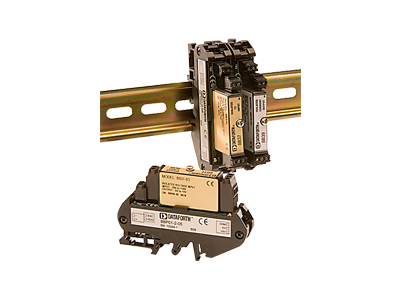

Dataforth 8B

Input Type

±10 mV DC
±20 mV DC
±30 mV DC
Strain Gauge

# of Inputs

1

Output Type

0 - 5 V DC
±5 V DC

Bandwidth

3 Hz
8 kHz

Excitation

3.33 V DC
10 V DC

Isolation

Yes

Supply Power

5 V DC

Models

8B38-01

8 kHz Bandwidth, ± 10 mV Input, ± 5 V DC Output

8B38-02

8 kHz Bandwidth, ± 30 mV Input, ± 5 V DC Output

8B38-03

8 kHz Bandwidth, ± 20 mV Input, ± 5 V DC Output

8B38-04

8 kHz Bandwidth, ± 10 mV Input, 0-5 V DC Output

8B38-05

8 kHz Bandwidth, ± 30 mV Input, 0-5 V DC Output

8B38-06

8 kHz Bandwidth, ± 20 mV Input, 0-5 V DC Output

8B38-31

3 Hz Bandwidth, ± 10 mV Input, ± 5 V DC Output

8B38-32

3 Hz Bandwidth, ± 30 mV Input, ± 5 V DC Output

8B38-35

3 Hz Bandwidth, ± 20 mV Input, ± 5 V DC Output

8B38-36

3 Hz Bandwidth, ± 10 mV Input, 0-5 V DC Output

8B38-37

3 Hz Bandwidth, ± 30 mV Input, 0-5 V DC Output

8B38-38

3 Hz Bandwidth, ± 20 mV Input, 0-5 V DC Output
