8B Signal Conditioner Carrier Backplanes

Modular Signal Conditioner Carrier

Dataforth

  • Single Channel DIN Rail Mounting Accessory
  • 1, 2, 4, 8 & 16 Position Backpanels
  • Panel or DIN Rail Mounting Options
  • 19-Inch Mounting Rack for Backpanels
  • Power Supply Modules that accept 7-34 Vdc input

Details

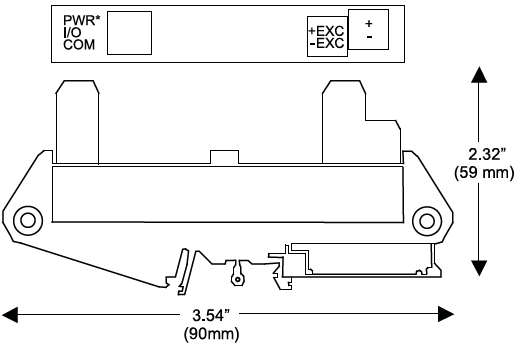

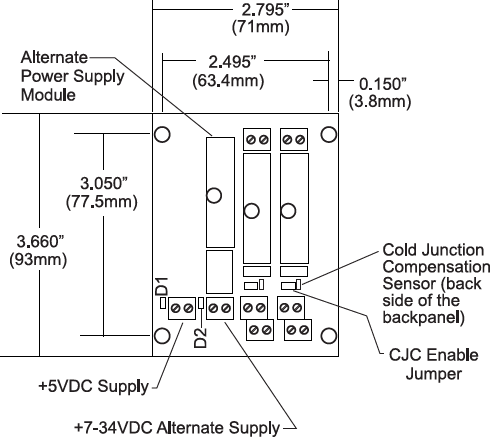

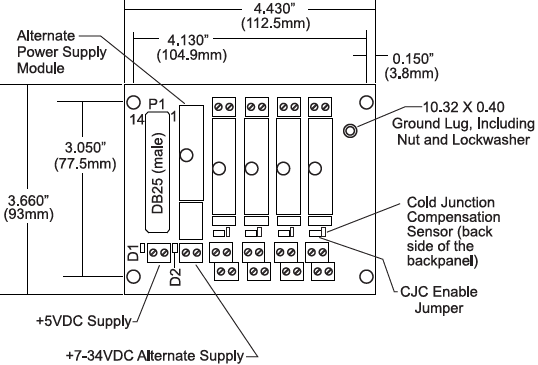

     8BP01 1 Chn Carrier                 8BP02 Two Chn Back Panel - Carrier                                   8BP04 Four Channel Back Panel - Carrier

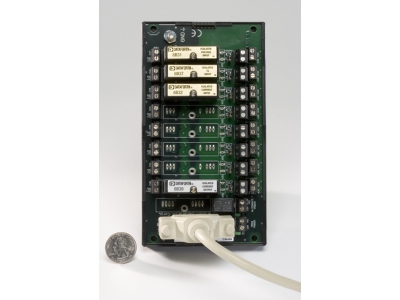

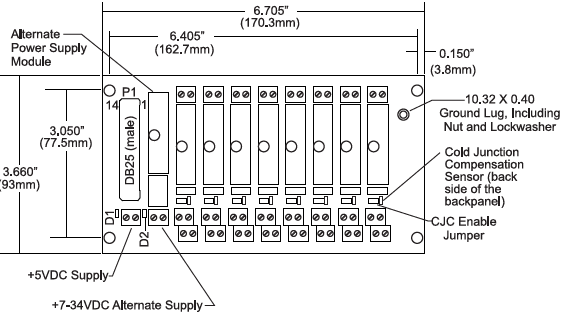

8BP08 Eight Channel Back Panel - Carrier

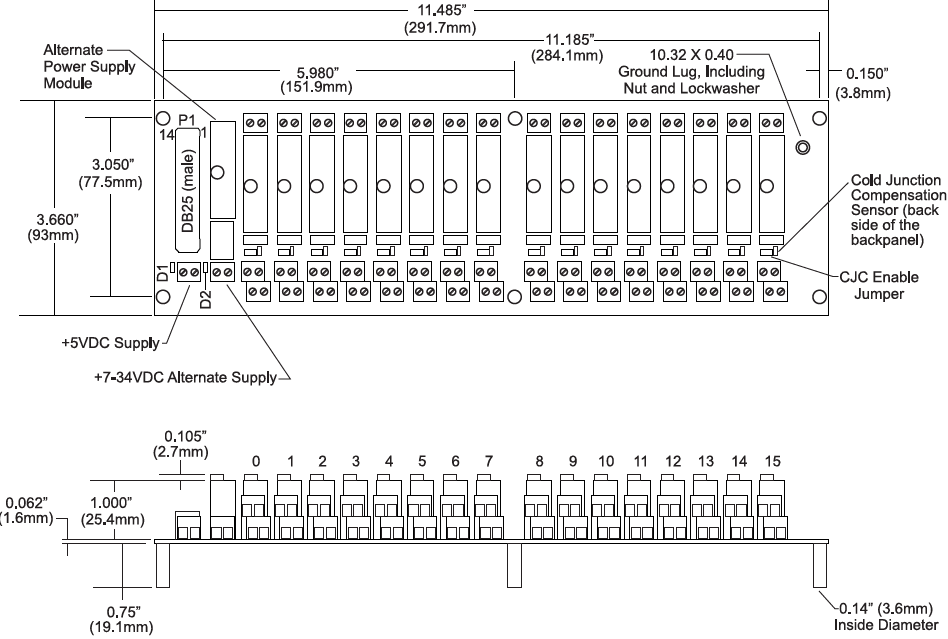

8BP16 Sixteen Channel Back Panel Carrier with Standoffs and Cold Junction Compensation modules

Specifications

Family
Dataforth 8B

Models

8B04-3
4 Channel Carrier, with DIN rail mounting, without Cold Junction Compensation
8BP02
2 Channel Carrier, with Standoffs for mounting, with Cold Junction Compensation
8BP02-1
2 Channel Carrier, with Standoffs for mounting without Cold Junction Compensation
8BP02-2
2 Channel Carrier, with DIN rail mounting, with Cold Junction Compensation
8BP02-3
2 Channel Carrier, with DIN rail mounting, without Cold Junction Compensation
8BP04
4 Channel Carrier, with Standoffs for mounting, with Cold Junction Compensation
8BP04-1
4 Channel Carrier, with Standoffs for mounting, without Cold Junction Compensation
8BP04-2
4 Channel Carrier, with DIN rail mounting, with Cold Junction Compensation
8BP08
8 Channel Carrier, with Standoffs for mounting, with Cold Junction Compensation
8BP08-1
8 Channel Carrier, with Standoffs for mounting, without Cold Junction Compensation
8BP08-2
8 Channel Carrier, with DIN rail mounting, with Cold Junction Compensation
8BP08-3
8 Channel Carrier, with DIN rail mounting, without Cold Junction Compensation
8BP16
16 Channel Carrier, with Standoffs for mounting, with Cold Junction Compensation
8BP16-1
16 Channel Carrier, with Standoffs for mounting, without Cold Junction Compensation
8BP16-2
16 Channel Carrier, with DIN rail mounting, with Cold Junction Compensation
8BP16-3
16 Channel Carrier, with DIN rail mounting, without Cold Junction Compensation
8BPWR-2
Power Module, 7-34Vdc input, 5Vdc - 3A output

Downloads

8B Signal Conditioning Back Panel - Carriers & Accessories
8B Signal Conditioners Overview
