SPA

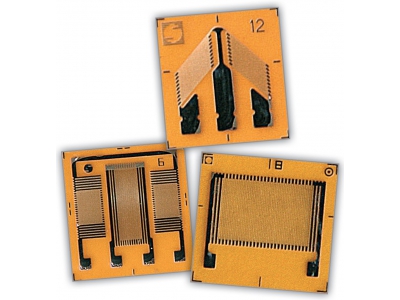

Foil Strain Gauges

Scaime

  • Polyimide backing & Constantan conductor
  • Encapsulated & Reinforced versions
  • Material Compensation, 13ppm for Aluminum & 6ppm for Steel
  • Gauge Lengths of 0.11", 0.125" & 0.150"
  • Gauge Resistance, 350Ω for 1/4 bridge and 700Ω for 1/2 bridge

Downloads

Foil Strain Gauges
Datasheet

Related

CRFX/B(C)-8

The CRFX/B(C)-8 module is a DC bridge amplifier with 8 differential analog inputs of higher bandwidths allowing for the measurement of voltage and current, strain gauges, bridge sensors, IEPE/ICP sensors.

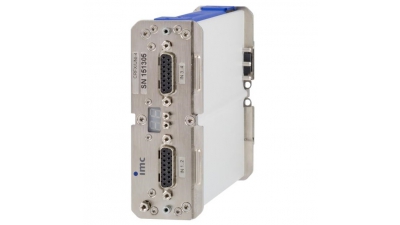

CRFX/BR2-4

The CRFX/BR2-4 is a universal DC and CF bridge measurement amplifier for 4 channels and can also be used as a DC differential amplifier. It is capable of measuring 4 strain gauges, LVDT, voltage, current and IEPE/ICP sensors.

CRFX/DCB(C)2-8

The DCB(C)2-8 is an economical DC bridge amplifier. With 8 differential analog inputs, it allows the measurement of voltage and current, strain gauges, bridge sensors and IEPE/ICP sensors.

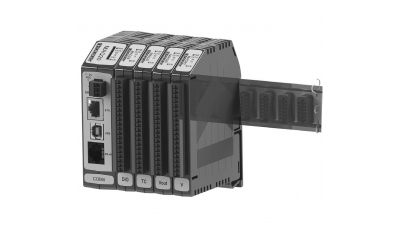

MAQ20-BRDG1
