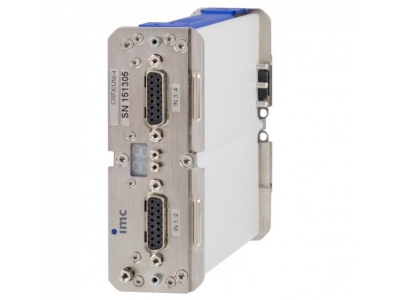

CRFX/BR2-4

imc CRONOSflex Module

imc Test & Measurement

  • imc CRONOSflex Bridge Measurement Amplifier
  • 4 Analog Input Channels
  • Carrier Frequency Excitation (5 kHz) for Bridges & LVDT
  • Supports Single & Dual Sense Line Configurations
  • Symmetric Bridge Supply of 1 V, 2.5 V, 5 V with DC & AC Mode
  • Broken Wire Detection
  • Integrated Calibration Resistor for Shunt Calibration

Specifications

Family
imc CRFX
Unit Type
Module
Input Type
Voltage
Current
Strain Gauge
ICP
Analog Inputs
4
Max Bandwidth
14 kHz
Max Sample Rate
100 kHz
Resolution
16-bit
24-bit
Min Temperature
-10 °C
-40 °C
Max Temperature
55 °C
85 °C
IP Rating
IP20

Models

CRFX/BR2-4
4 Analog Inputs, DSUB-15 Connectors, -10°C to 55°C
CRFX/BR2-4-ET
4 Analog Inputs, DSUB-15 Connectors, -40°C to 85°C
