The MAQ20 input module has channels that are individually configurable for range, and engineering values, to match the most demanding applications. Sampling rate, resolution, bandwidth, excitation voltage and shunt calibration are user selectable.

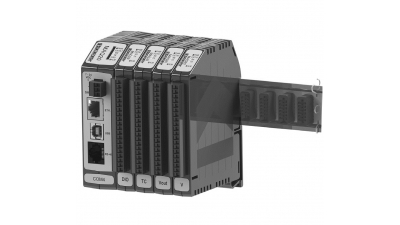

Multiple Bridge modules can be added to expand the systems channel capacity.
MAQ20-BRDG1
Bridge Input Module
Dataforth
- 4 Bridge/Strain Gauge Input Channels
- Supports Quarter Half & Full Bridge configurations
- 4 or 6-wire Sensor Inputs for excitation drop compensation
- Input-to-Bus Isolation, 1500 Vrms
- Channel Overload Protection, 30 Vrms
- Individually Configurable Inputs
- Simultaneous Sampling using dedicated A/D convertors
Details
Specifications
Family
Dataforth MAQ20
Unit Type
Module
Input Type
Strain Gauge
Analog Inputs
4
Min Temperature
-40 °C
Max Temperature
85 °C
Models
MAQ20-BRDG1
4 Bridge/Strain Gauge Inputs
Downloads
MAQ20-BRDG1
MA1038 ReDAQ Shape for MAQ20 User Manual
MA1037 Configuration Tool User Manual
AN101 RMS_Voltage_Current
AN105 Resistance Temperature Detector V2
AN121 RiseTime vs BW
AN126 Tuning_Surge_Tank_Level_Control_Loops
AN128 RMS Revisited
AN129 Harmonics and utility costs
AN901Cross Point Switch using MAQ20-DORLY20 Module
AN902 MAQ20 PID Control in a Home Heating Application
Hysteresis Specifications
Faraday's Law of Induction
Data Acquisition Systems Accessories
Signal Conditioner Surge Withstand Capability
Signal-to-Noise Ratio, SNR
Signal Conditioning Measured vs Combinational Error
When Good Grounds Go Bad
Why Should Sensors Be Isolated
Related

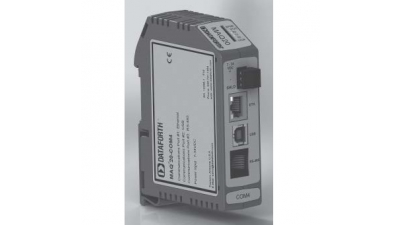

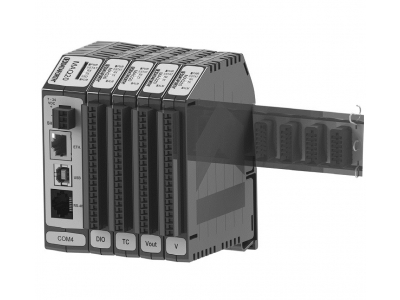

The MAQ20-COM base unit is offered in two models and provides the connection between a host computer and a MAQ20 data acquisition system. The MAQ20-COM supports up to 4 simultaneous Socket connections with Ethernet TCP/IP. The MAQ20-COM can...
