CRFX/B(C)-8

imc CRONOSflex Module

imc Test & Measurement

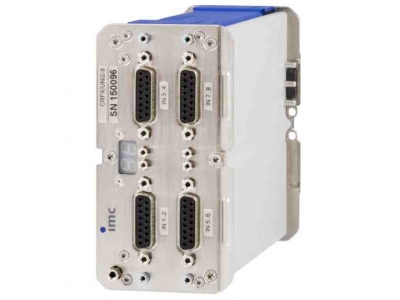

imc CRONOSflex Dynamic Strain Gauge Module
8 Analog Input Channels
Very High Signal Bandwidth of up to 48 kHz
Software Selectable Quarter-Bridge Completion Between 120 - 350 ohms
Graphical Configuration Wizard to Set Strain Gauge Bridges
Supports imc Plug & Measure
High-Density DSUB Terminal Connection Available

Specifications

Family

imc CRFX

Unit Type

Module

Input Type

Voltage
Current
Strain Gauge
ICP

Analog Inputs

8

Max Bandwidth

48 kHz

Max Sample Rate

100 kHz

Resolution

16-bit
24-bit

Min Temperature

-10 °C
-40 °C

Max Temperature

55 °C
85 °C

IP Rating

IP20

Models

CRFX/B-8

8 Analog Inputs, DSUB-15 Input Connectors, -10°C to 55°C

CRFX/B-8-ET

8 Analog Inputs, DSUB-15 Input Connectors, -40°C to 85°C

CRFX/B-8-L

8 Analog Inputs, LEMO Input Connectors, -10°C to 55°C

CRFX/B-8-L-ET

8 Analog Inputs, LEMO Input Connectors, -40°C to 85°C

CRFX/BC-8

8 Analog Inputs, DSUB-26 HD Input Connectors, -10°C to 55°C

CRFX/BC-8-ET

8 Analog Inputs, DSUB-26 HD Input Connectors, -40°C to 85°C
