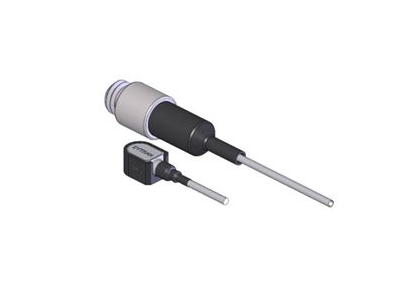

The Dytran 3224A series is an ultra-miniature teardrop IEPE accelerometer with integral electronics, designed to adhesively mount in spaces inaccessible to other types of accelerometers and an overall weight of just 0.2 grams. 3224A series is capable of reliable operation in temperatures up to +300°F (+149°C)
Available with 1 mV/g up to 14 mV/g sensitivity, the 3224A series features a ceramic shear sensing element in lightweight laser welded titanium housing, with a 3-foot (0.9-meter) integral cable terminating to a 10-32 jack. The cable is designed to mate with several Dytran extension cables. Model 3224A5 features a 5-foot (1.5-meter) integral cable (exact sensitivity is provided on the calibration certificate supplied with each sensor).
Supplied Accessories: (1) model 6298 Petro mounting wax, (1) model 6725A installation/removal wrench
Suggested Accessories: model 4110C current source power unit, model 6273 petro mounting wax
Compatible Cables: 6011A
3224A
Ultra Miniature IEPE Accelerometer
Dytran Instruments Inc.
- IEPE
- +300°F (+149°C) operation
- Ultra miniature teardrop design
- Laser Welded, Epoxy Sealed Cable
- 0.25 mV/g, 1 mV/g, 2 mV/g, 5 mV/g, 10 mV/g or 9 to 14 mV/g sensitivity
- 500g, 1000g, 2500g, 5000g, or 20000g range
- 0.3 to 20,000 Hz (±5%) (A1/A3/A5)
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
500 g
1000 g
2500 g
5000 g
20000 g
1000 g
2500 g
5000 g
20000 g
Output
0.25 mV/g
1 mV/g
2 mV/g
5 mV/g
10 mV/g
14 mV/g
1 mV/g
2 mV/g
5 mV/g
10 mV/g
14 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Adhesive
Connection
Integral Cable
Min Temperature
-51 °C
Max Temperature
149 °C
Models
3224A1
10 mV/g, 500g range, 3-foot (0.9-meter) integral cable
3224A2
2 mV/g, 2,500g range, 3-foot (0.9-meter) integral cable
3224A3
5 mV/g, 1,000g range, 3-foot (0.9-meter) integral cable
3224A4
1 mV/g, 5,000g range, 3-foot (0.9-meter) integral cable
3224A5
9 to 14 mV/g, 500g range, 5-foot (1.5-meter) integral cable
3224A6
0.25 mV/g, 20,000g range, 3-foot (0.9-meter) integral cable
