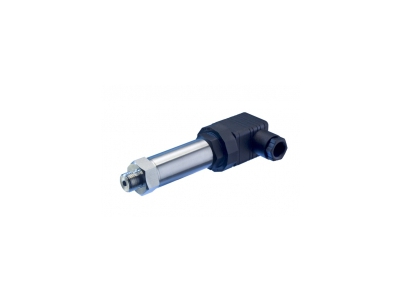

PTA220

High Accuracy Pressure Sensor

EFE Sensors

Precision of better than +/-0.05% F.S.
Available with Built in Electronic
All Stainless steel
Large Bandwidth
Large choice of connectors & threads

Details

The PTA220 series are designed for absolute or gauge pressure measurements from 50mbar up to 600bar. With all stainless steel wetted parts, it is compatible with most fluids used in the industry including corrosive ones. Manufactured with proven components ensuring accuracy and reliability, the PTA220 is compatible with most applications thanks to a large choice of mechanical and electrical connections .

Specifications

Type

Industrial

Operational Mode

Absolute
Sealed Gauge
Vented Gauge

Full Scale

1 psi
2.5 psi
5 psi
10 psi
11 - 16 psi
15 psi
25 psi
50 psi
100 psi
250 psi
500 psi
1000 psi
2000 psi
3000 psi
5000 psi
7500 psi
10000 psi

Output

1.5 mV/V
4.5 V DC
5 V DC
10 V DC

Precision

±0.05 % FS
±0.10 % FS

Excitation

5 V DC
8 - 16 V DC
15 V DC
15 - 30 V DC

Material

Stainless Steel

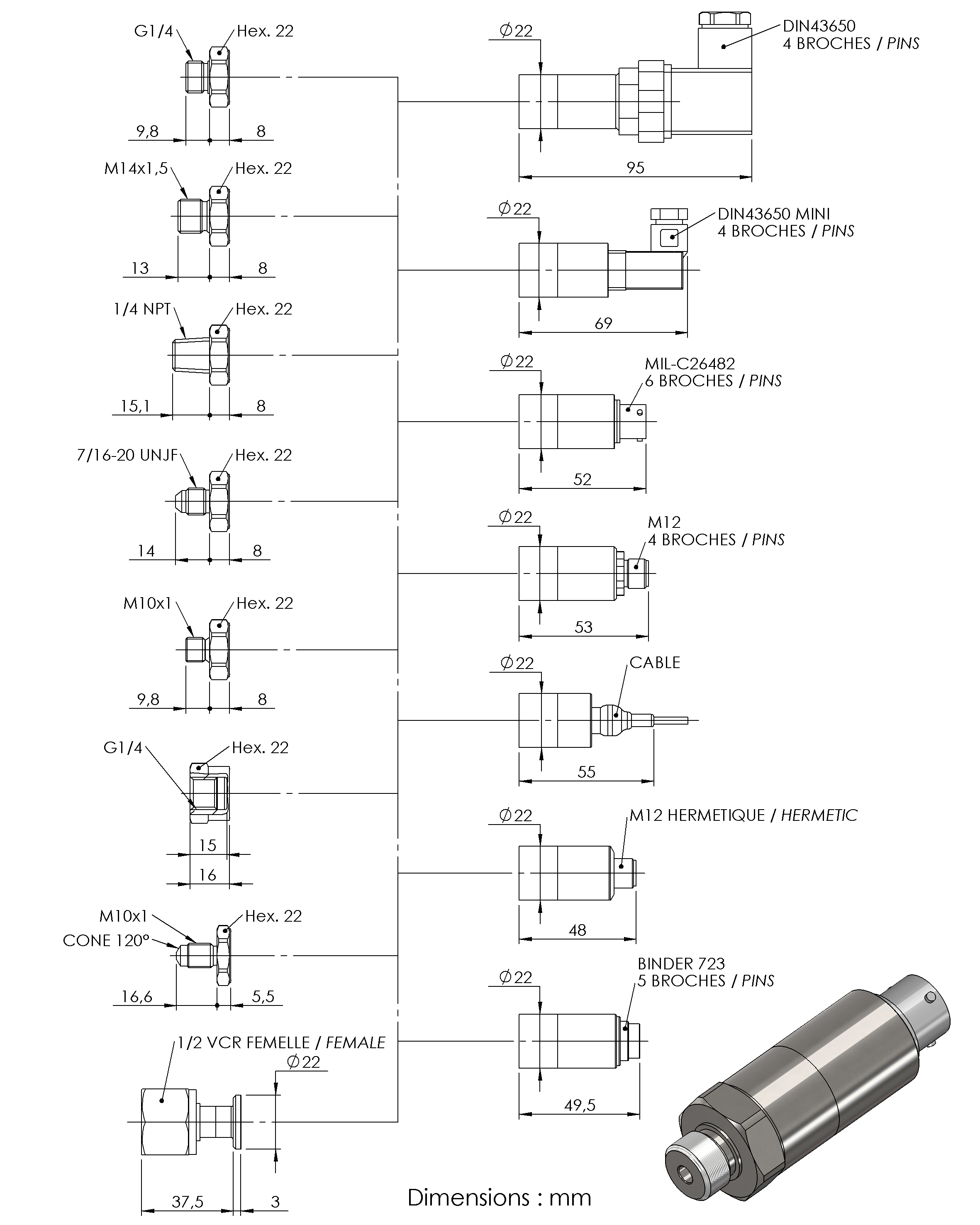

Thread

1/4 NPT Male
7/16-20 UNJF-3A
G 1/4 Male
M10 x 1
M14 Male

Min Temperature

-25 °C

Max Temperature

125 °C

Models

PTA221

Power supply: 5 to 15Vdc; Output Signal: mV/V

PTA224

Power supply: 8 to 30 Vdc; Output Signal: 0-5Vdc

PTA225

Power supply: 12 to 30Vdc; Output Signal: 4-20mA - 2 wires

PTA226

Power supply: 15 to 30Vdc; Output Signal: 0-10Vdc

PTA227

Power supply: 8 to 30Vdc; Output Signal: 0.5-4.5Vdc unregulated power supply
