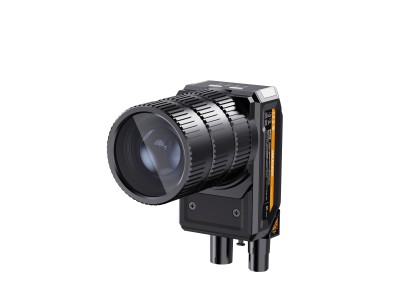

The MV-SC5120X series is a powerful line of 12 MP smart cameras designed for high-precision visual inspection tasks. Built on a high-performance embedded platform, the cameras combine deep learning capabilities with traditional image processing tools, offering over 140 algorithms through the Vision Master platform.
With a large 1/1.1" global shutter CMOS sensor delivering 4096 × 2944 resolution at up to 30 fps, these cameras are suited for applications requiring detailed imaging and fast processing. Users can choose between the color model (MV-SC5120XC-00C-NNN) and the monochrome model (MV-SC5120XM-00C-NNN) depending on the inspection needs.
Designed for harsh environments, both models feature IP67-rated housings, C-mount lens interfaces, and wide compatibility with industrial communication protocols like PROFINET, EtherNet/IP, and Modbus. Their compact size, robust connectivity, and AI-ready architecture make them ideal for electronics, packaging, and life sciences applications.

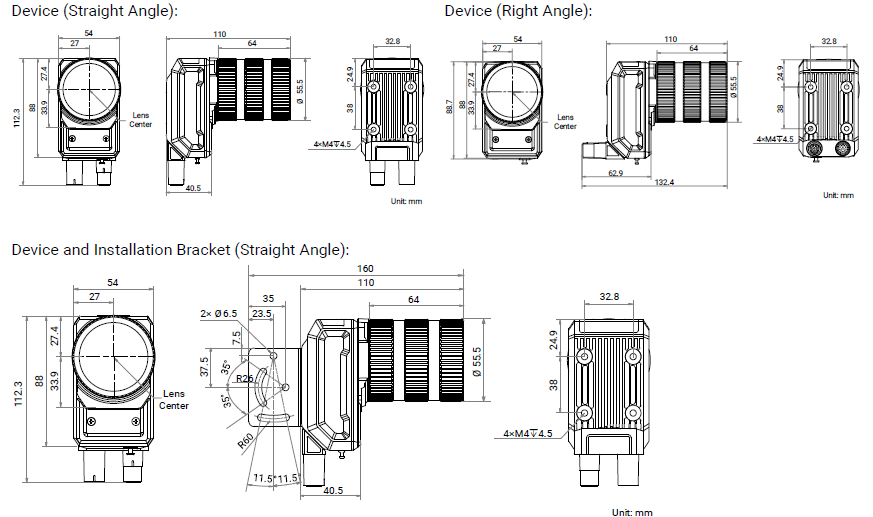

Dimension
