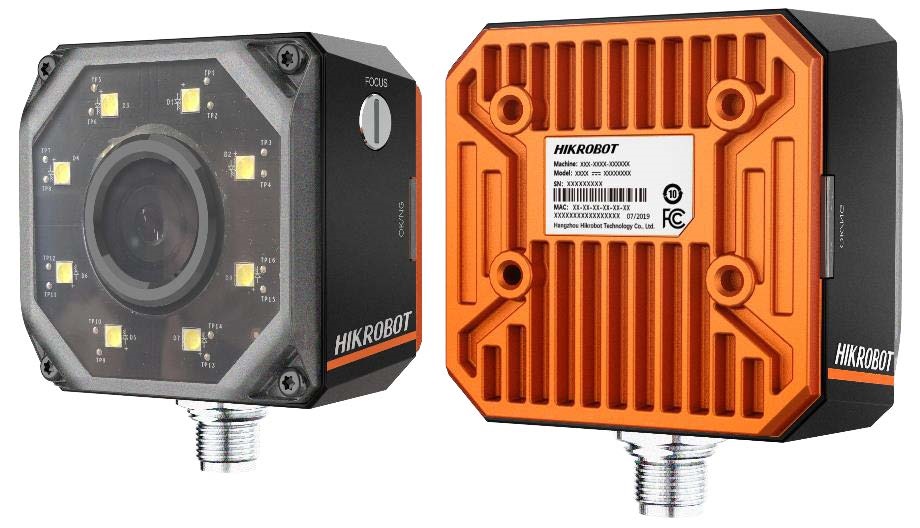

MV-SC2016PC, 1.6 MP

Vision Sensor

HIKROBOT

Adopts embedded hardware platform for highspeed image processing.
Adopts built-in position and measurement algorithm to detect object’s presence, position, dimension, etc.
Multiple IO interfaces for input and output signals.
Multiple indicators for displaying device status.
Adopts light source to ensure uniform brightness in the illuminated area.
Supports multiple communication protocols, including TCP, UDP, Serial, IO, Modbus,
PROFINET, Ethernet/IP, FTP, etc.

Details

With built-in position and measurement algorithm, the MVSC2016PC vision sensor can detect object’s presence, position, dimension, etc. It can be monitored and operated via web based interface. The vision sensor can output detection results via RS-232, Ethernet, etc., and cooperate with other devices via IO. It supports multiple result output methods and customized result text output.

Specifications

Series

SC2000

Resolution

1.6 MP

Existence Tools

Circle Existence
Line Existence

Measurement Tools

Brightness Analysis
Line to Line Angle
Point to Line

Deep Learning / AI

Feature Matching
Fixture
Blob Detection

Mono/Color

Color

Communication

Ethernet/IP
Profinet
Modbus
FTP
TCP Client/Server
UDP Server
RS-232

Highest Single Pixel Accuracy

0.023 mm

Memory

2 GB

Storage

4 GB

Power Supply

12 VDC
24 VDC

Max Installation Distance

800 mm (31.5")

Models

MV-SC2016PC-06S-WBN

6 mm focal length vision sensor

MV-SC2016PC-12S-WBN

12.4 mm focal length vision sensor

MV-SC2016PC-15S-WBN

14.8 mm focal length vision sensor

Accessories

Lens Cap

Transparent lens cap

Polarization or infrared filter lens cap
