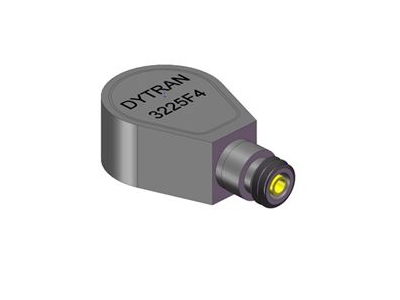

The Dytran models 3225F4/F5/F6 is an ultra miniature teardrop low profile IEPE accelerometer with a sensitivity of 1 mV/g up to 10 mV/g, designed to adhesively mount in spaces typically inaccessible to other types of accelerometers. The sensor has an overall height of 0.16-inches (4.1-millimeters) and weighs just 0.6 grams.
Featuring a quartz shear sensing element in a lightweight titanium housing, the model 3225F4/F5/F6 utilizes a 3-56 radial connector (cable sold separately). Models 3225F4/F5/F6 is uniquely capable of operation in high vacuum vibration levels typically found in space related applications.
Supplied Accessories: (1) model 6298 Petro mounting wax, (1) model 6591A installation/removal wrench
Suggested Accessories: model 4110C current source power unit, model 6273 petro mounting wax
Compatible Cables: 6003A, 6003B
3225F4/F5/F6
Ultra Miniature IEPE Accelerometer
Dytran Instruments Inc.
- IEPE
- Ultra miniature teardrop design
- Low outgassing
- 1 mV/g, 5 mV/g, or 10 mV/g sensitivity
- 500g, 1,000g or 5,000g range
- 1.4 to 5,000 (±5%) frequency range
- 3-56 radial connector
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
500 g
1000 g
5000 g
1000 g
5000 g
Output
1 mV/g
5 mV/g
10 mV/g
5 mV/g
10 mV/g
Excitation
18 - 30 V DC
Material
Titanium
Mounting
Adhesive
Connection
3-56 Coaxial
Min Temperature
-51 °C
Max Temperature
121 °C
Models
3225F4
1 mV/g, 5,000g range
3225F5
10 mV/g, 500g range
3225F6
5 mV/g, 1,000g range
