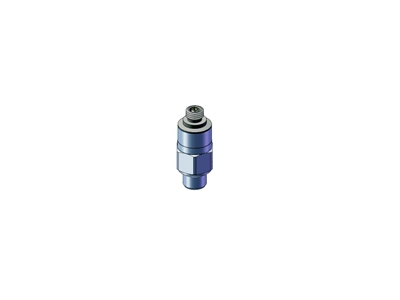

The Dytran model 3019A/3019A1 is a miniature IEPE accelerometer with a 10 mV/g sensitivity and an upper frequency response of 10,000 Hz.
Design of the model 3019A/3019A1 incorporates a quartz sensing element operating in compression mode, packaged in a highly rugged stainless steel housing, for a total weight of just 8 grams. Units also feature a 10-32 axial connector and 10-32 or 1/4-28 stud mounting capabilities. The sensor is hermetically sealed for reliable operation in high humidity and dirty environments and base isolated to avoid EMI/ground loop interference.
Recommended Accessories: model 4110C current source power unit
Compatible Cables: 6010A, 6011A, 6012A, 6016A, 6018A, 6022A, 6026A, 6032A, 6033A, 6049A, 6050A, 6051A, 6053A, 6054A, 6066A, 6069A, 6093A, 6099A, 6400A, 6401A, 6412A, 6429A, 6924A, 6930A, 6991A
3019A
Industrial Accelerometer
Dytran Instruments Inc.
- Miniature IEPE accelerometer
- 10 mV/g sensitivity
- 500g range
- 1 to 10,000 Hz frequency range (±5%)
- 10-32 axial connector
- Mounting: (model 3019A) 1/4-28 stud, (model 3019A1) 10-32 integral stud
- Weight: 8.0 grams
Details
Specifications
Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
500 g
Output
10 mV/g
Excitation
18 - 30 V DC
Material
Stainless Steel
Mounting
Integral Stud
Connection
10-32 Micro Coaxial
Min Temperature
-60 °C
Max Temperature
300 °C
Models
3019A
1/4-28 X .20 long Integral Mounting Stud
3019A1
10-32 X .20 long Integral Mounting Stud
