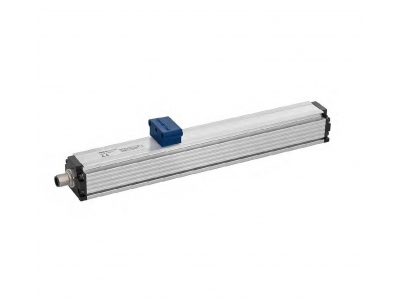

The TP1 Series NOVOSTRICTIVE Transducer is a high-precision linear position sensor based on magnetostrictive measurement technology, offering non-contact operation for extended service life and long-term stability. Its touchless design eliminates wear, enabling maintenance-free performance even in dirty or humid industrial environments.
With measuring ranges available up to 4250 mm, the TP1 Series provides exceptional accuracy (linearity up to ±0.02% FS) and resolution as fine as 1 µm. The sensor is available in multiple electrical interface options, including analog voltage/current, SSI, Impulse, Incremental, CANopen, and IO-Link, ensuring compatibility with both modern and legacy control systems.
The robust anodized aluminum housing, IP67/IP68 sealing, and mechanical decoupling between the sensor and position marker make the TP1 ideal for demanding automation and manufacturing environments. When paired with floating or guided magnetic position markers, the sensor can measure position and speed simultaneously, with support for up to three markers on a single unit.
