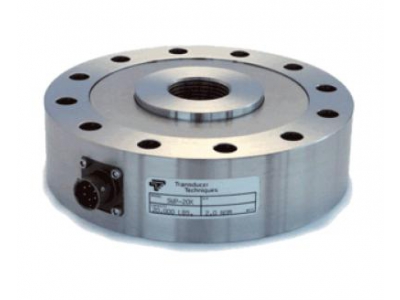

SWP

Fatigue Resistant

Transducer Techniques

  • Fatigue Rated to 10<sup>8</sup> cycles (One Direction)
  • Fatigue Rated to 50 x 10<sup>6</sup> cycles (Bidirectional)
  • Tension & Compression
  • Accuracy: ±0.15% R.O.
  • Outer Diameter: 104.8mm - 203.2mm
  • Height: 34.9mm - 50.8mm
  • Connection: PT02A-10-6P Connector

Specifications

Type
Pancake
Application
Tension & Compression
Full Scale
1000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
20000 lbs
50000 lbs
Output
2 mV/V
Precision
±0.15 % FS
Excitation
10 V - 20 V DC
Min Temperature
-54 °C
Max Temperature
93 °C

Models

SWP-10K
SWP-1K
SWP-20K
SWP-2K
SWP-3K
SWP-50K
SWP-5K
SWP-5K-4

Downloads

SWP Pancake
Datasheet
