The series SW Weigh Cells cover the weighing range up to 2,000 g. They have been specifically designed as compact sensor components and are especially suited for installation into checkweighers, packaging and filling machines and multi-track weighing systems. The Weigh Cells constructed in stainless steel (GMP compatible) are also suitable for applications in the pharmaceutical industry.

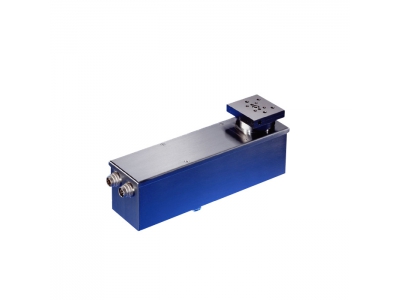

SW
Precision Weigh Cell
Wipotec Gmbh
- Weighing range up to 2,000 g, covered by 7 types
- Additive dead load range up to 2,000 g
- Multi-track applications starting from 70 mm centerline distance
- Stainless Steel housing
- Protection class IP 44
- Settling Time: < 120 ms
- Compact, Slim construction
Details
Specifications
Type
Weigh Cell
Full Scale
20 g
50 g
100 g
200 g
500 g
1000 g
2000 g
50 g
100 g
200 g
500 g
1000 g
2000 g
Dead Load
150 g
300 g
400 g
600 g
1000 g
2000 g
300 g
400 g
600 g
1000 g
2000 g
Interface
RS232
RS422
Binary I/O
Bus Operation
RS422
Binary I/O
Bus Operation
Linearity
0.001 g
0.002 g
0.005 g
0.01 g
0.02 g
0.05 g
0.1 g
0.002 g
0.005 g
0.01 g
0.02 g
0.05 g
0.1 g
Resolution
0.001 g
0.002 g
0.005 g
0.01 g
0.02 g
0.05 g
0.1 g
0.002 g
0.005 g
0.01 g
0.02 g
0.05 g
0.1 g
IP Rating
IP44
Models
SW-100/400
Weigh Range 100 g, Dead Load 400 g
SW-1000/1000
Weigh Range 1000 g, Dead Load 1000 g
SW-20/150
Weigh Range 20 g, Dead Load 150 g
SW-200/600
Weigh Range 200 g, Dead Load 600 g
SW-2000/2000
Weigh Range 2000 g, Dead Load 2000 g
SW-50/300
Weigh range 50 g, Dead Load 300 g
SW-500-1000
Weigh Range 500 g, Dead Load 1000 g
