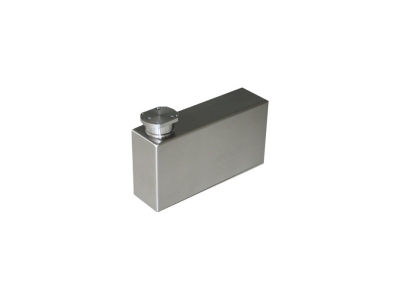

The series SW-M-FS Weigh Cells cover the weighing range up to 2,000 g. They have been specifically designed as compact sensor components, which are suited for installation into multi-track applications and everywhere where smallest frame sizes are demanded.
By using GMP-tailored design, all Weigh Cells are also suitable for use in pharmaceutical industrial plants.
The Weigh Cell sensor is connected with the separate electronic box via a cable of 5 m length. The electronic box is prepared for top hat rail mounting in control cabinets. The system provides final weighing values by default via a CAN, RS 422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT or Powerlink interface. The integrated software filters can be configured multifunctional, enabling optimal adaptation of the weighing system to the respective ambient conditions.
