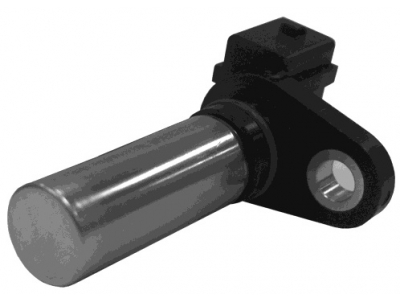

SNDH-T

Quadrature Hall-Effect Speed & Direction Sensors

  • Dual Differential Hall-Effect Sensor
  • Bipolar Complementary Metal-Oxide Semiconductor Technology
  • Hall-effect magnetic sensing technology
  • Advanced performance dynamic offset self calibration
  • Air gap up to 2 mm [0.08 in]
  • Near zero speed
  • Automotive under-the-hood packaging integrity

Specifications

Type
Hall Effect
Max Frequency
15 kHz
Mounting
6.3 mm Through Hole
Connection
AMP C-282192
Min Temperature
-40 °C
Max Temperature
150 °C

Models

SNDH-T4C
4-Wire Output, Connector
SNDH-T4L
4-Wire Output, Leadwire
SNDH-T4P-G01
4-Wire Output, Pigtail with Rectangular Connector
SNDH-T4P-G02
4-Wire Output, Pigtail with Oval Connector

Downloads

SNDH-T Quadrature Hall-Effect Speed & Direction Sensors
Datasheet
