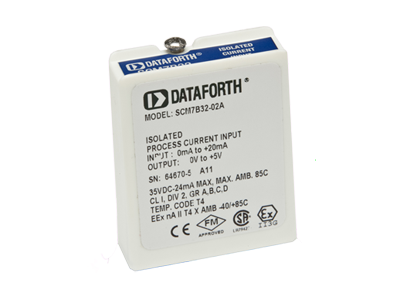

SCM7B36

Potentiometer Input Process Control Signal Conditioner

Dataforth

Potentiometer Input Module
1500 V Transformer Isolation
Accuracy: ± 0.03%
DIN Rail Mounting with DIN Backpanel
Module
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 120 V AC Continuous

Specifications

Family

Dataforth 7B

Input Type

Potentiometer

# of Inputs

1

Output Type

0 - 5 V DC
1 - 5 V DC
0 - 10 V DC

Bandwidth

3 Hz

Isolation

Yes

Supply Power

14 - 35 V DC

Models

SCM7B36-01

0 to 100 Ω Input, 1-5 V Output

SCM7B36-01A

0 to 100 Ω Input, 0-5 V Output

SCM7B36-01D

0 to 100 Ω Input, 0-10 V Output

SCM7B36-02

0 to 200 Ω Input, 1-5 V Output

SCM7B36-02A

0 to 200 Ω Input, 0-5 V Output

SCM7B36-02D

0 to 200 Ω Input, 0-10 V Output

SCM7B36-03

0 to 500 Ω Input, 1-5 V Output

SCM7B36-03A

0 to 500 Ω Input, 0-5 V Output

SCM7B36-03D

0 to 500 Ω Input, 0-10 V Output

SCM7B36-04

0 to 1 kΩ Input, 1-5 V Output

SCM7B36-04A

0 to 1 kΩ Input, 0-5 V Output

SCM7B36-04D

0 to 1 kΩ Input, 0-10 V Output

SCM7B36-05

0 to 5 kΩ Input, 1-5 V Output

SCM7B36-05A

0 to 5 kΩ Input, 0-5 V Output

SCM7B36-05D

0 to 5 kΩ Input, 0-10 V Output

SCM7B36-06

0 to 10 kΩ Input, 1-5 V Output

SCM7B36-06A

0 to 10 kΩ Input, 0-5 V Output

SCM7B36-06D

0 to 10 kΩ Input, 0-10 V Output
