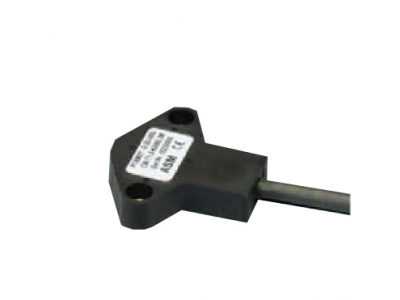

PTAM27/PTDM27

Universal MEMS Inclination Sensor

ASM Sensors, Gmbh

  • MEMS Technology Inclination Sensor
  • Single Axis Range: ± 180°
  • Dual Axis Range: ± 180°
  • Analog or CANopen Output
  • Plastic Housing
  • Connection: Analog: 2m Integral Cable
  • Connection: CANopen: 5-pin M12 Socket

Specifications

Type
Analog
Non-Contact
Full Scale
120°
360°
Max Speed
Unlimited
Output
0 - 5 V DC
0 - 10 V DC
4 - 20 mA
CANopen
CAN SAE J1939
Non-Linearity
±0.15 % FS
±0.25 % FS
±0.40 % FS
Resolution
0.05°
0.1°
Excitation
5 V DC
10 - 36 V DC
18 - 36 V DC
IP Rating
IP67
Min Temperature
-40 °C
Max Temperature
85 °C

Models

PTAM27
Analog Output
PTDM27
CANopen Output
