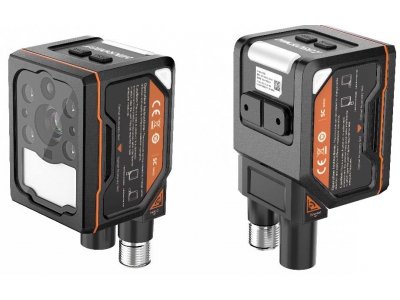

MV-SC3030XC

3.0 MP Advanced Color Vision Sensor

HIKROBOT

Adopts embedded hardware platform to realize high-speed image processing
Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions
Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP and other communication modes
Adopts multiple IO interfaces for input and output signals

Details

MV-SC3030XC 3 MP Color Vision Sensor

With built-in high-precision vision algorithms, MVSC3030XC vision sensor can realize counting, existence, measurement, recognition and other functions. It can be easily configured and operated via the SCMVS client software, and it uses RS-232 and Ethernet to output vision tool results and customized results.

Specifications

Software Platform

SCMVS

Series

SC3000X

Resolution

3 MP

Existence Tools

Pattern Existence
Spot Existence
Edge Existence
Circle Existence
Line Existence

Counting Tools

Pattern Count
Spot Count
Edge Count

Measurement Tools

Brightness Analysis
Contrast Measurement
Greyscale Size
Diameter Measurement
Width Measurement
Line Angle
Line to Line Angle
Point to Line
Color Size
Edge Width Measurement
Brightness Average Value
Distance Detection

Recognition Tools

OCR
Barcode
Color Recognition
Color Contrast
Code Recognition
DL Object Detection
DL Classification

Deep Learning / AI

Classification
Object Detection

Logic & Math

IF Module
Condition Judge
Logic Judge
Combination Judge
Character Comparison
Calculator
String Comparison

Power Supply

24 VDC

Max Installation Distance

2000 mm (78.7")

Models

MV-SC3030XC-08M-WBN

8 mm Focal Lens

MV-SC3030XC-12M-WBN

12 mm Focal Lens

MV-SC3030XC-16M-WBN

16 mm Focal Lens
