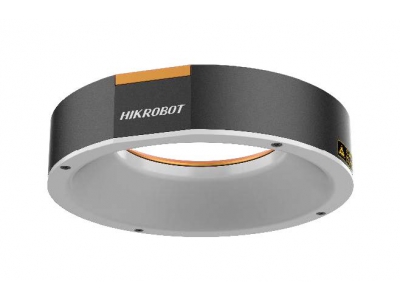

MV-LRSS-H

Shadowless Ring-Type Lighting

HIKROBOT

  • High uniformity illumination.
  • Various sizes of outer diameter for selection
  • Ideal for character recognition, color detection, and defect inspection
  • Natural cooling system, no fans required
  • 24 VDC input with SMR-03V-B connector

Details

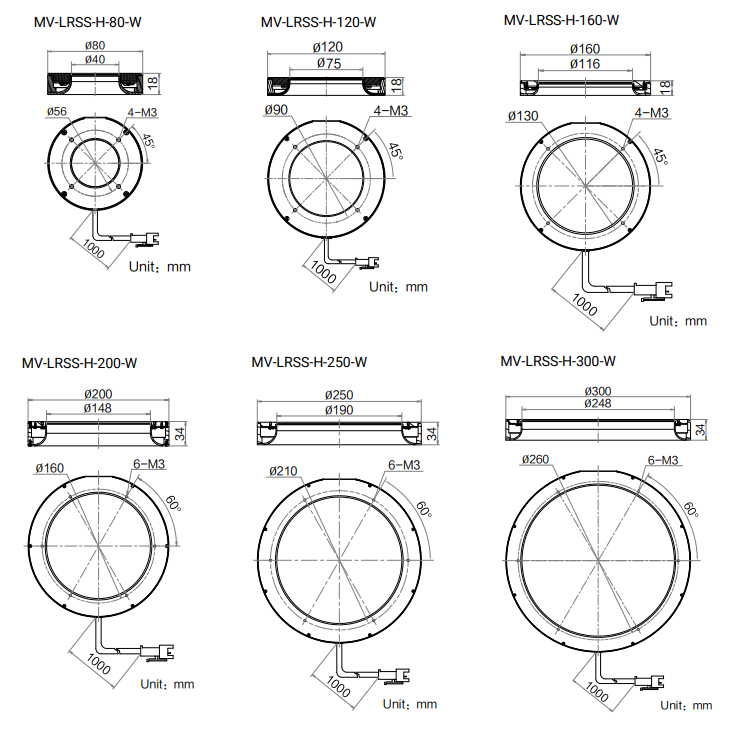

Dimension

Specifications

Color
White
LED Rows
1
Power Consumption
8.7 W
13.1 W
17.4 W
21.8 W
26.2 W
30.5 W
Min Temperature
0 °C
MaxTemperature
40 °C
Connector type
SMR-03V-B

Models

MV-LRSS-H-120-W
Outer dimensions:120 mm -- Power consumption: 13.1W
MV-LRSS-H-160-W
Outer dimensions:160 mm -- Power consumption: 17.4 W
MV-LRSS-H-200-W
Outer dimensions:200mm -- Power consumption: 21.8W
MV-LRSS-H-250-W
Outer dimensions:250 mm -- Power consumption: 26.2W
MV-LRSS-H-300-W
Outer dimensions:300mm -- Power consumption: 30.5W
MV-LRSS-H-80-W
Outer dimensions:80mm -- Power consumption: 8.7W

Downloads

MV-LRSS-H
Datasheet
