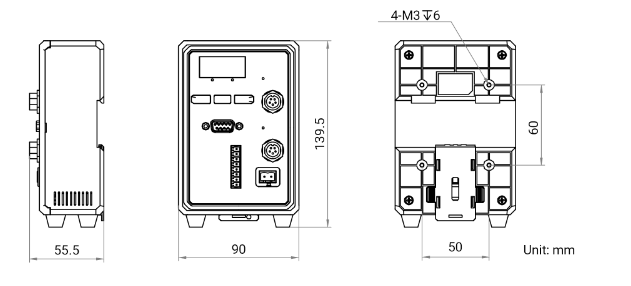

Dimension

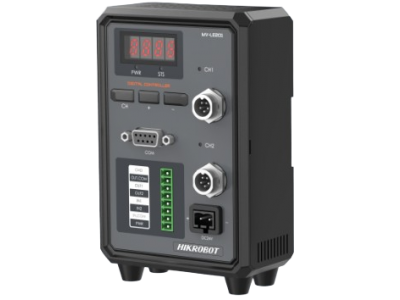

MV-LE201-30W5-2FD
Digital Light Controller
HIKROBOT
- Utilizes constant current for enhanced light source stability, with a maximum output power of 750 W.
- Features buttons and a display for easy operation.
- Allows parameter settings and device management via serial port or network interface.
- Supports an external trigger interface for various lighting modes.
- Provides protection against overcurrent, overload, and short circuits.
Details
Specifications
Drive mode
Constant Current
Digital
Digital
Channel
2-channel
Dimming mode
Control panel
Software
Software
Trigger mode
External trigger
Internal trigger
Internal trigger
Input voltage
24 VDC
Output voltage
5 VDC
Output power
Max. 30 W
Min Temperature
0 °C
Max Temperature
40 °C
Cooling mode
Fan cooling
Ingress protection
IP30
Models
MV-LE201-30W5-2FD
Light controller for dot-type lighting
Downloads
MV-LE201-500W48-2TD
