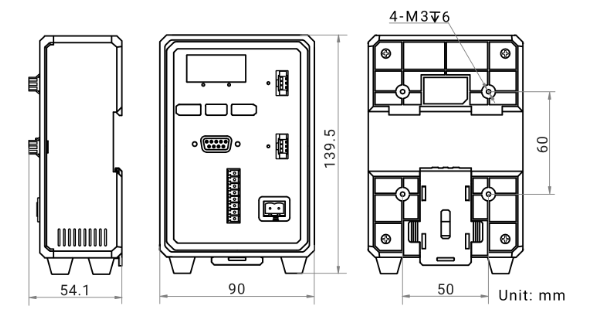

Dimension
MV-LE200-48W24-2D

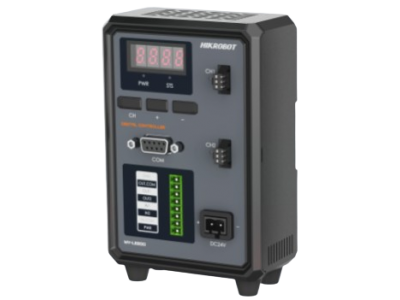

Digital Light Controller
HIKROBOT
- Supports different control modes of light source, including control panel and software.
- Supports using serial port or network interface to set parameters and manage the device.
- Provides multichannel inputs and outputs.
- Supports installation via slide rail or hole.
- Supports overcurrent, overload, short circuit protection.
Details
Specifications
Drive mode
Constant Voltage
Digital
Digital
Channel
2-channel
Dimming mode
Control panel
Software
Software
Trigger mode
External trigger
Internal trigger
Internal trigger
Input voltage
24 VDC
Output voltage
24 VDC
Output power
Max. 48 W
Min Temperature
0 °C
Max Temperature
40 °C
Cooling mode
Natural cooling
Ingress protection
IP30
Models
MV-LE200-48W24-2D
Digital Light Controller，2 channel，48W/24V
