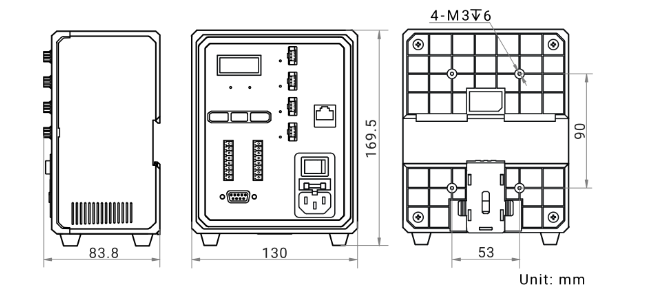

Dimension
MV-LE200-200W24-4TD

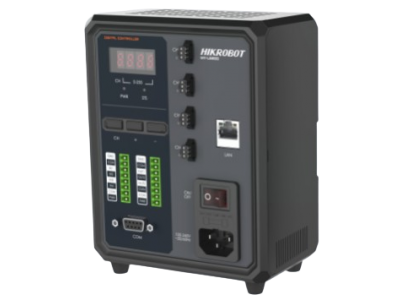

Digital Light Controller
HIKROBOT
- Compatible with various control modes, including control panel and software.
- Allows parameter settings and device management through serial port or network interface.
- Offers multiple input and output channels.
- Supports installation using slide rails or mounting holes.
- Includes protection against overcurrent, overload, and short circuits.
Details
Specifications
Drive mode
Constant Voltage
Digital
Digital
Channel
4-channel
Dimming mode
Control panel
Software
Software
Trigger mode
External trigger
Internal trigger
Internal trigger
Input voltage
100 VAC - 240 VAC
Output voltage
24 VDC
Output power
Max. 200 W
Min Temperature
0 °C
Max Temperature
40 °C
Cooling mode
Fan cooling
Ingress protection
IP30
Models
MV-LE200-200W24-4TD
Digital Light Controller，4 channel，200W/24V
Downloads
MV-LE200-200W24-4TD
