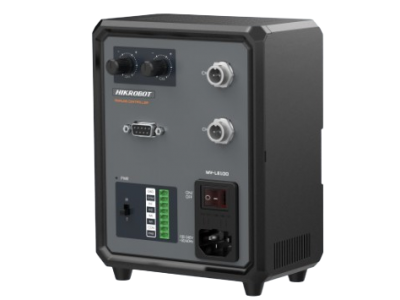

MV-LE100-200W24-2BD

Analog Light Controller

HIKROBOT

  • Utilizes constant voltage control for infinitely adjustable brightness.
  • Features knob control on the panel for easy plug-and-play operation.
  • Offers multiple opto-isolated input channels.
  • Supports installation using slide rails or screw holes.
  • Includes protection against overcurrent, overload, and short circuits.

Details

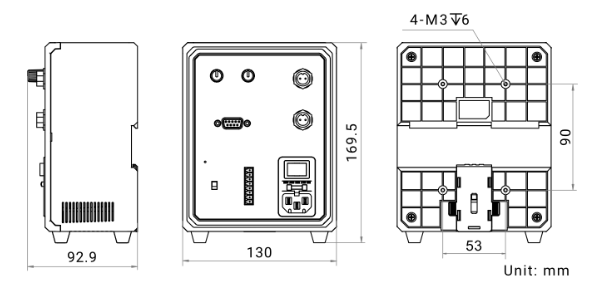

Dimension

Specifications

Drive mode
Analog
Constant Voltage
Channel
2-channel
Dimming mode
Control panel
Software
Trigger mode
External trigger
Input voltage
100 VAC - 240 VAC
Output voltage
24 VDC
Output power
Max. 120 W
Min Temperature
0 °C
Max Temperature
40 °C
Cooling mode
Fan cooling
Ingress protection
IP30

Models

MV-LE100-200W24-2BD
Analog Light Controller，2 channel，200W/24V

Downloads

MV-LE100-500W24-1ED
Datasheet
