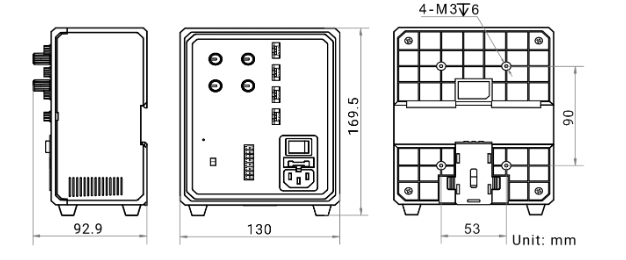

Dimension

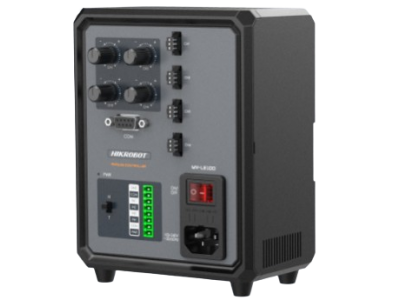

MV-LE100-120W24-4
Analog Light Controller
HIKROBOT
- Implements constant voltage control for seamless brightness adjustment.
- Equipped with a knob control on the panel for simple plug-and-play functionality.
- Offers multiple opto-isolated input channels.
- Allows installation using either slide rails or screw holes.
- Provides protection against overcurrent, overload, and short circuits.
Details
Specifications
Drive mode
Analog
Constant Voltage
Constant Voltage
Channel
4-channel
Dimming mode
Control panel
Trigger mode
External trigger
Input voltage
100 VAC - 240 VAC
Output voltage
24 VDC
Output power
Max. 120 W
Min Temperature
0 °C
Max Temperature
40 °C
Cooling mode
Fan cooling
Ingress protection
IP30
Models
MV-LE100-120W24-4
Analog Light Controller，4 channel，120W/24V
