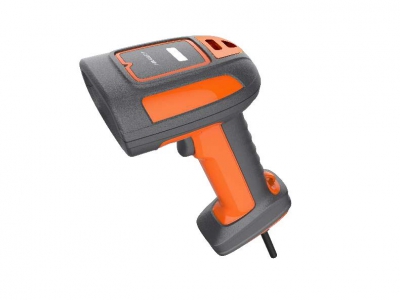

MV-IDH7000P, 1 MP

Wired Handheld Code Reader

HIKROBOT

  • Adopts code reading algorithm to provide good decoding capability.
  • Provides good robustness to read codes with spots, defects and low contrast radio.
  • Supports continuous code reading, batch code reading for improving code reading efficiency.
  • Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
  • Adopts illumination system to provide direct lighting and diffused reflection lighting.
  • Supports IP65 and drop height of 1.8 m.

Details

The IDH7000P series wired handheld code reader adopts code reading algorithm to provide good decoding capability for
DPM. It can read different types of one one-dimensional and two-dimensional codes, and output codes rapidly.

Specifications

Type
Hand Held
Resolution
1 MP
Power Supply
12 VDC
24 VDC
USB: 5 VDC
Data Interface
DC terminal
Fast Ethernet
RS-232
USB2.0
Communication
Ethernet/IP
FTP
Fins
HTTP
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
UDP
USB (HID/CDC)
1-Dimensional Code
Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
2-Dimensional Code
Data Matrix
QR Code
Ingress protection
IP65
Certification
CE
KC

Models

MV-IDH7000P/10ER/07RN/U/PM
MV-IDH7000P/10HHD/07RN/L/PM
MV-IDH7000P/10HHD/07RN/U/PM
MV-IDH7000P/10NR/07RN/L
MV-IDH7000P/10NR/07RN/LP
MV-IDH7000P/10NR/07RN/U
MV-IDH7000P/10SR/07RN/L
MV-IDH7000P/10SR/07RN/LP
MV-IDH7000P/10SR/07RN/U

Downloads

MV-IDH7000P Datasheet
Datasheet
MV-IDH7000P stp drawing
Drawings

Related

MV-IDH3013, 1.3 MP Wired Handheld

MV-IDH3013 wired handheld code reader adopts code reading algorithm and can read different types of one dimensional and two-dimensional codes, and output results rapidly.

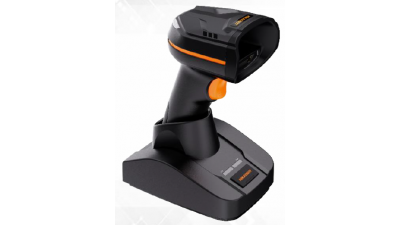

MV-IDH3013B, 1.3 MP Wireless Handheld
