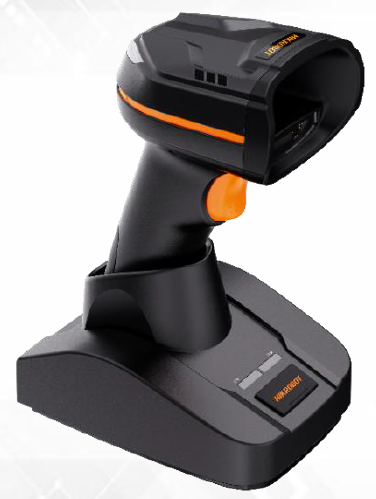

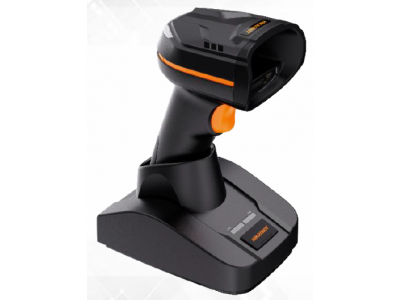

MV-IDH3013B, 1.3 MP Wireless Handheld

Smart Code Reader

HIKROBOT

  • Adopts code reading algorithm to read different types of one-dimensional and two dimensional codes.
  • Provides good robustness to read codes with spots, defects and low contrast radio.
  • Supports continuous code reading, batch code reading for improving code reading efficiency.
  • Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.
  • With smart bases, parameter configuration and device management via IDMVS client software are supported.

Details

MV-IDH3013B wireless handheld code reader adopts code reading algorithm and can read different types of one-dimensional and two-dimensional codes, and output results rapidly. It has good decoding capability for codes with spots, defects and low contrast radio, and entry level DPM code. With smart bases, the code reader can realize charging and data communication.

Specifications

Type
Hand Held
Resolution
1.3 MP
Power Supply
12 VDC
24 VDC
Battery: 3.8 VDC
USB: 5 VDC
Data Interface
DC terminal
Fast Ethernet
RS-232
USB2.0
Communication
Bluetooth 5.0, 2.4 GHz
FTP
Serial
SmartSDK
TCP Client/Server
UDP
USB (HID/CDC)
1-Dimensional Code
Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
2-Dimensional Code
Data Matrix
QR Code

Models

MV-IDH3013B-05N-R1L
Fast Ethernet kit with near distance
MV-IDH3013B-05N-R1U
USB interface kit with near distance
MV-IDH3013B-05S-R1L
Fast Ethernet kit with standard distance
MV-IDH3013B-05S-R1U
USB interface kit with standard distance

Accessories

MV-IDA-H30-IBASE-01L
Smart base with Fast Ethernet
MV-IDA-H30-IBASE-01U
Smart base with USB interface
MV-IDA-H70-IBASE-01L
Smart base with network interface
MV-IDA-H70-IBASE-01U
Smart base with USB interface

Downloads

MV-IDH3013B, Datasheet
Datasheet
MV-IDH3013B, Drawing
Drawings

Related

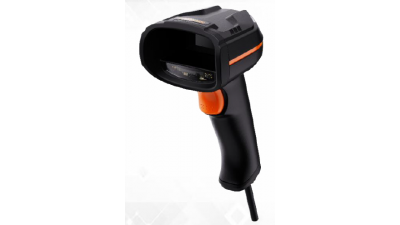

MV-IDH3013, 1.3 MP Wired Handheld

MV-IDH3013 wired handheld code reader adopts code reading algorithm and can read different types of one dimensional and two-dimensional codes, and output results rapidly.

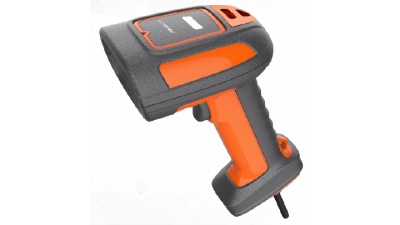

MV-IDH7000, 1 MP Handheld

IDH7000 series wired handheld code reader adopts code reading algorithm to provide good decoding capability for DPM.

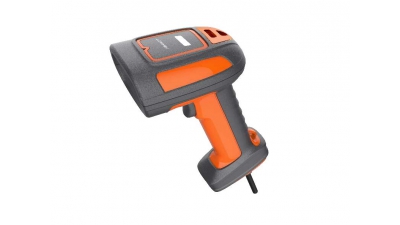

MV-IDH7000P, 1 MP
