The MV-ID5200M-00C-NNN smart code reader can read different types of codes with reading speeds up to 36 codes/sec. It adopts CMOS sensor and deep learning algorithm to process image with good robustness, and can recognize various codes.

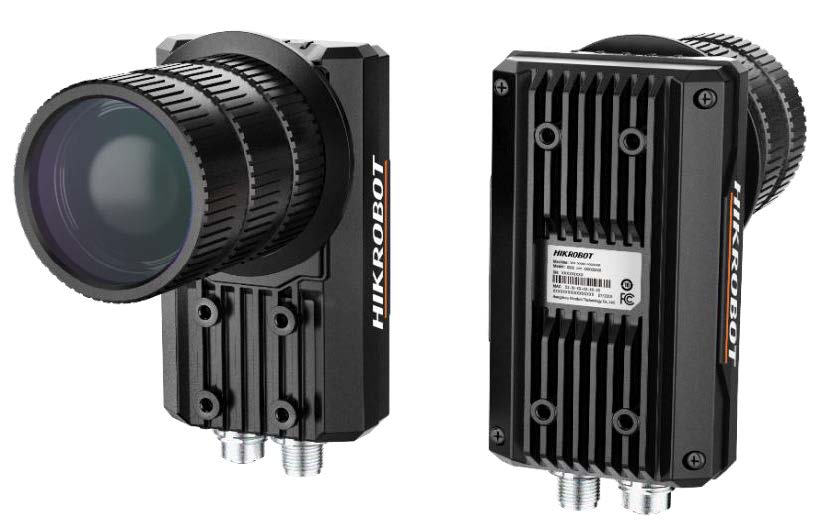

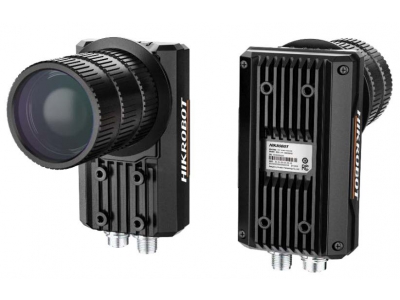

MV-ID5200M-00C-NNN, 20 MP
Smart Code Reader
HIKROBOT
- Adopts CMOS sensor to acquire image data and provide high-quality image.
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Supports code quality evaluation to detect the printing quality of codes.
- Supports multiple communication protocols, including Serial, FTP, Profinet,Fins, etc.
- Supports RS-232 serial port and indicators displaying device status.
Details
Specifications
Type
Industrial
Resolution
20 MP
Power Supply
12 VDC
24 VDC
24 VDC
Max Reading Speed
36 codes/sec
Data Interface
Gigabit Ethernet
Communication
Ethernet/IP
FTP
Fins
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
UDP
FTP
Fins
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
UDP
1-Dimensional Code
Code 11
Code 39
Code 93
Code 128
CodaBar
China Post
EAN 8
EAN 13
ITF 14
ITF 25
Matrix 25
MSI
UPCA
UPCE
Code 39
Code 93
Code 128
CodaBar
China Post
EAN 8
EAN 13
ITF 14
ITF 25
Matrix 25
MSI
UPCA
UPCE
2-Dimensional Code
Data Matrix
QR Code
QR Code
Certification
CE
KC
FCC
RoHS
KC
FCC
RoHS
Models
MV-ID5200M-00C-NNN
20 MP Smart Code Reader
Accessories
Lens Cap
Transparent lens cap
Lens Cap
Polarization lens cap
