The MV-ID2013M (Long Focal Length) smart code reader can read different types of 1-dimensional and 2- dimensional codes, and its max. reading speed reaches 45 codes/sec. It adopts deep learning algorithm to process images with good robustness, and can recognize various codes.

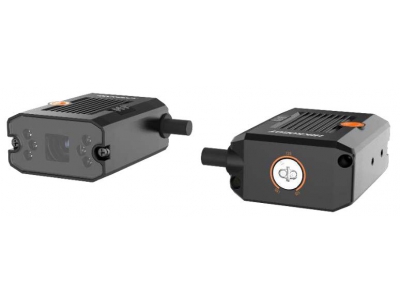

MV-ID2013M (Long Focal Length)
Smart Code Reader
HIKROBOT
- Compact design and small in size.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, etc.
Details
Specifications
Type
Industrial
Resolution
1.3 MP
Power Supply
12 VDC
24 VDC
24 VDC
Max Reading Speed
45 codes/sec
Data Interface
Fast Ethernet
Communication
Ethernet/IP
FTP
Fins
HTTP
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
UDP
FTP
Fins
HTTP
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
UDP
1-Dimensional Code
Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
2-Dimensional Code
Data Matrix
QR Code
QR Code
Mono/color
Mono
Certification
CE
KC
FCC
RoHS
KC
FCC
RoHS
Models
MV-ID2013M-16S-RBN
16 mm focal length
MV-ID2013M-25S-RBN
25 mm focal length
Related

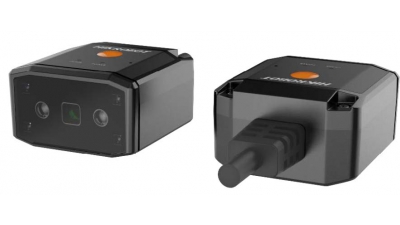

MV-ID2013EM smart code reader can read different types of 1-dimensional and 2-dimensional codes, and its max. reading speed reaches 30 codes/sec.
