The MV-ID2013M smart code reader can read different types of 1-dimensional and 2-dimensional codes, and it's max. reading speed reaches 45 codes/sec.

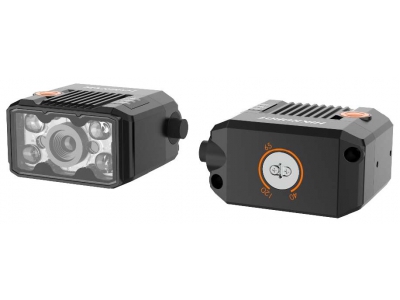

MV-ID2013M, 1.3 MP
Smart Code Reader
HIKROBOT
- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts aviation connector for single cable wiring.
- Adopts LED aiming light to help aim codes.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
Details
Specifications
Type
Industrial
Resolution
1.3 MP
Power Supply
12 VDC
24 VDC
24 VDC
Max Reading Speed
45 codes/sec
Data Interface
Fast Ethernet
Communication
Ethernet/IP
FTP
Fins
HTTP
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
UDP
FTP
Fins
HTTP
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
UDP
1-Dimensional Code
Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
2-Dimensional Code
Data Matrix
QR Code
QR Code
Mono/color
Mono
Certification
CE
FCC
RoHS
FCC
RoHS
Models
MV-ID2013M-06S-BBN
Blue light
MV-ID2013M-06S-RBN
Red light
MV-ID2013M-06S-RBP
Red light source with polarized lens cap
MV-ID2013M-06S-WBN
White light
MV-ID2013M-06S-WBP
White light source with polarized lens cap
