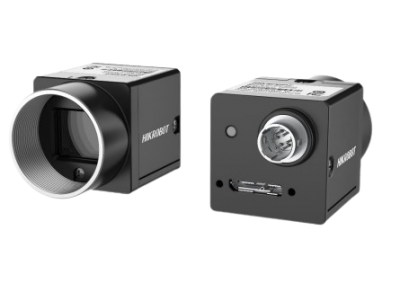

MV-CU020-90UM

2 MP Area Scan Camera

HIKROBOT

  • Supports auto or manual adjustment of gain,exposure time, manual adjustment of LUT, and Gamma correction, customized ROI, horizontal and vertical reverse image output.
  • Adopts compact design for flexible installation.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

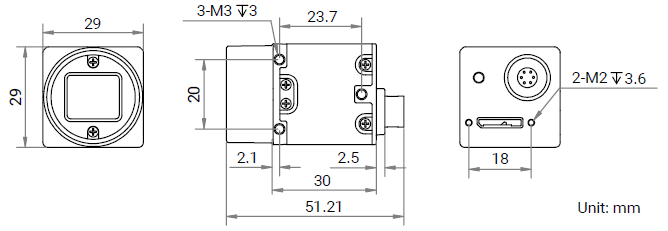

Dimension

Specifications

Type
CU Series
Resolution
2 MP
Frame Rate
150.2 fps
Data interface
USB3.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC

Models

MV-CU020-90UM
Mono

Downloads

MV-CU020-90UM Datasheet
Datasheet
