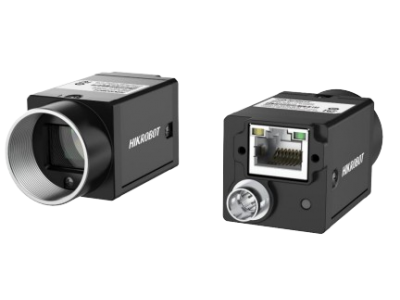

MV-CU020-90G

2 MP Area Scan Camera

HIKROBOT

  • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
  • Supports customized ROI and supports horizontal and vertical reverse image output.
  • Adopts compact design to meet small spatial requirements.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

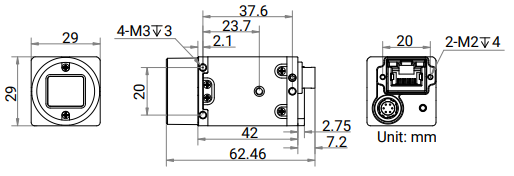

Dimension

Specifications

Type
CU Series
Resolution
2 MP
Frame Rate
49 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE

Models

MV-CU020-90GC
Color
MV-CU020-90GM
Mono

Downloads

MV-CU020-90GM/GC Datasheet
Datasheet
