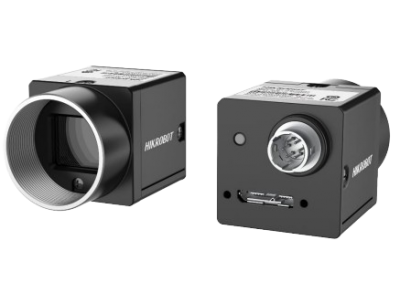

MV-CU013-80U

1.3 MP Area Scan Camera

HIKROBOT

  • Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
  • Supports hardware trigger, software trigger, free run, etc.
  • Adopts compact design for flexible installation.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

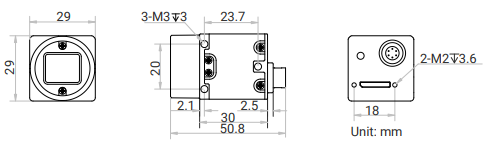

Dimension

Specifications

Type
CU Series
Resolution
1.3 MP
Frame Rate
240.4 fps
Data interface
USB3.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
USB3.0

Models

MV-CU013-80UC
Color
MV-CU013-80UM
Mono

Downloads

MV-CU013-80UM/UC Datasheet
Datasheet
