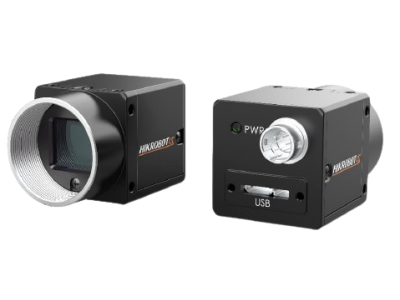

MV-CS200-R

20 MP Area Scan Camera

HIKROBOT

  • Adopts brand new design to reduce power consumption.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Provides high sensitivity, wide dynamic range, and low noise.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Details

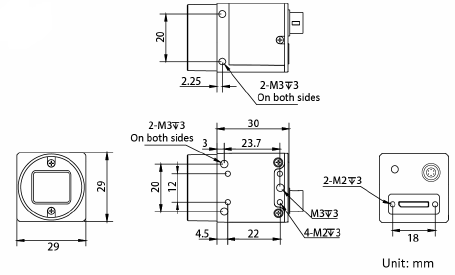

Dimension

Specifications

Type
CS Series
Resolution
20 MP
Frame Rate
19.2 fps
Data interface
USB3.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-30 °C
Max Working Temperature
60 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
USB3.0

Models

MV-CS200-RC
Color
MV-CS200-RM
Mono

Downloads

MV-CS200-RM/RC Datasheet
Datasheet
