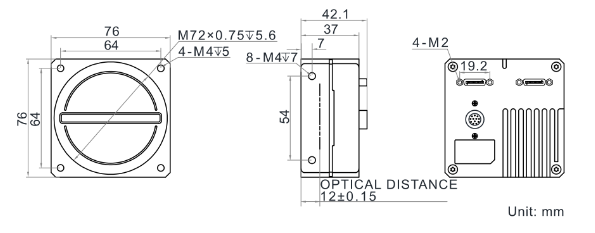

Dimension

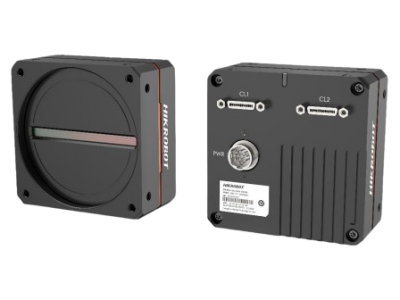

MV-CL083-92CC
Line Scan Camera
HIKROBOT
- Adopts multiple ISP technologies and supports manual adjustments for Gamma correction, FFC correction, LUT, black level, etc.
- Supports RGB true color, multiple exposure and image acquisition modes, and ROI to increase the line rate.
- Compact design with flexible installation options.
- Supports bi-directional I/O wiring for flexible input/output settings.
- Compatible with the Camera Link protocol and the GenICam standard.
Details
Specifications
Resolution
8K
Data interface
Camera Link
Power supply
12 VDC - 24 VDC
Mono/Color
Color
Lens mount
F-mount
M72 x 0.75
M72 x 0.75
Ingress protection
IP 40
Min Working Temperature
-20 °C
Max Working Temperature
55 °C
Client software
MVS
Frame grabber
Frame grabber
Models
MV-CL083-92CC
Color
