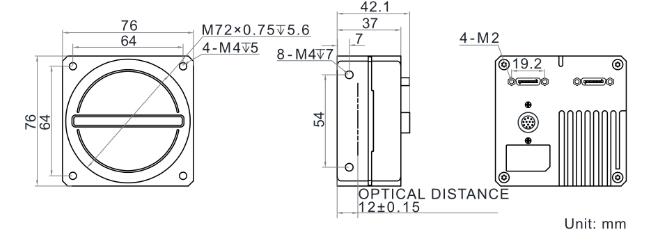

Dimension

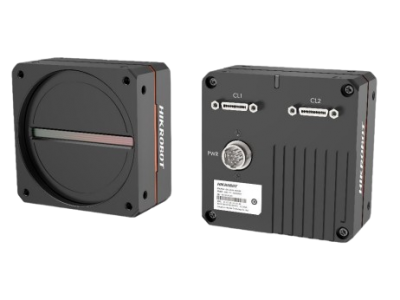

MV-CL082-92CM
Line Scan Camera
HIKROBOT
- Supports multiple exposure and image acquisition modes.
- Adopts various ISP technologies and allows for manual adjustments for Gamma correction, FFC correction, LUT, black level, etc.
- Supports ROI to increase the line rate (maximum 200 kHz in 1-line mode) and bi-directional I/O wiring for flexible input/output settings.
- Compact design with flexible installation options.
- Compatible with the Camera Link protocol and the GenICam standard.
Details
Specifications
Resolution
8K
Data interface
Camera Link
Power supply
12 VDC - 24 VDC
Mono/Color
Mono
Lens mount
F-mount
M72 x 0.75
M72 x 0.75
Ingress protection
IP 40
Min Working Temperature
-20 °C
Max Working Temperature
55 °C
Client software
MVS
Frame grabber
Frame grabber
Certification
CE
KC
FCC
RoHS2.0
KC
FCC
RoHS2.0
Models
MV-CL082-92CM
Mono
Downloads
MV-CL082-92CM
