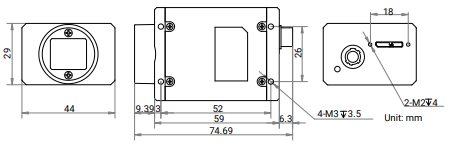

Dimension

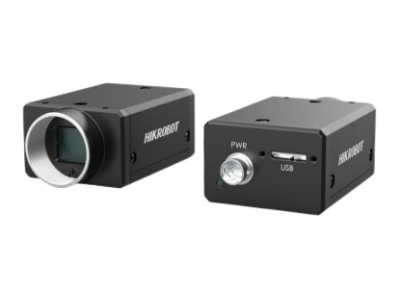

MV-CH100-60U
10 MP Area Scan Camera
HIKROBOT
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, hardware trigger, software trigger, free run, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Details
Specifications
Type
CH Series
Resolution
10 MP
Frame Rate
36 fps
Data interface
USB3.0
USB2.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-10 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC - 24 VDC
USB3.0
USB3.0
Models
Model MV-CH100-60UM
Mono
MV-CH100-60UC
Color
Downloads
MV-CH100-60UM/UC Datasheet
