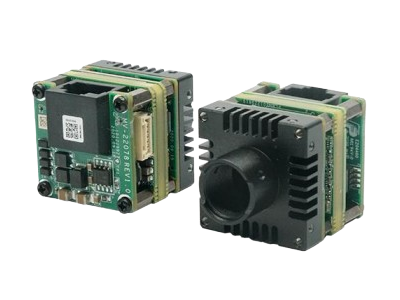

MV-CB060-10G

6 MP Board Level Camera

HIKROBOT

  • Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc.
  • Adopts noise reduction and image compression functions to provide high-quality images.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

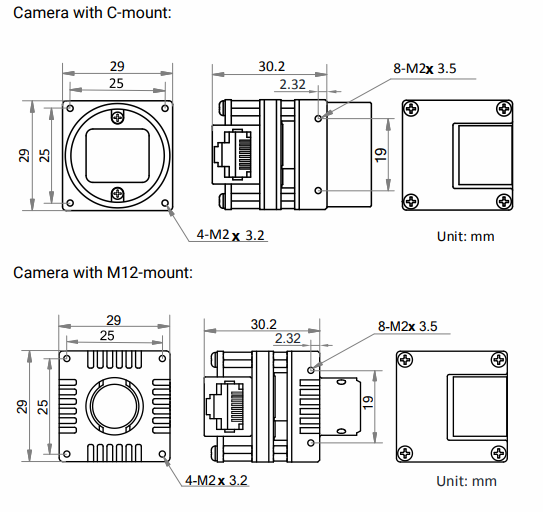

Dimension

Specifications

Type
CB Series
Resolution
6 MP
Frame Rate
19.1 fps
30.7 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
M12-mount
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE
Certification
CE
KC
FCC
RoHS

Models

MV-CB060-10GC
Color
MV-CB060-10GC-C
Color
MV-CB060-10GC-S
Color
MV-CB060-10GM
Mono
MV-CB060-10GM-C
Mono
MV-CB060-10GM-S
Mono

Downloads

MV-CB060-10GM/C
Datasheet
