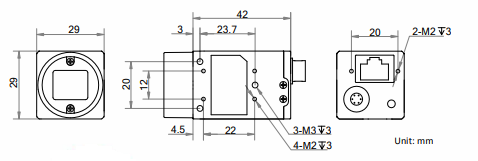

Dimension

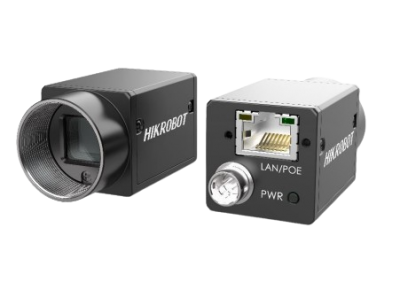

MV-CA050-12GC
5 MP Area Scan Camera
HIKROBOT
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports auto and manual adjustment for exposure control, LUT, Gamma correction, hardware trigger, software trigger, free run, etc.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.
Details
Specifications
Type
CA Series
Resolution
5 MP
Frame Rate
24.1 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC - 24 VDC
PoE
PoE
Models
MV-CA050-12GC
Color
Downloads
MV-CA050-12GC
