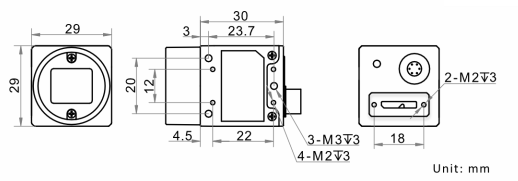

Dimension

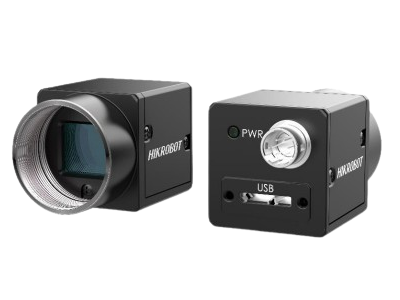

MV-CA013-A0U
1.3 MP Area Scan Camera
HIKROBOT
- Supports customized ROI, horizontal and vertical reverse image output, and both auto and manual adjustments of gain, exposure time, LUT, Gamma correction, etc.
- Adopts compact design for flexible installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Details
Specifications
Type
CA Series
Resolution
1.3 MP
Frame Rate
201 fps
Data interface
USB3.0
USB2.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC - 24 VDC
USB3.0
USB3.0
Models
MV-CA013-A0UC
Color
MV-CA013-A0UM
Mono
Downloads
MV-CA013-A0UM/UC
