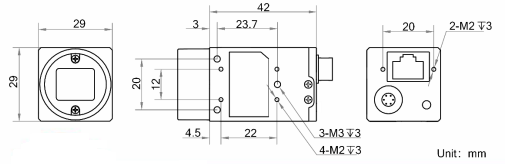

Dimension

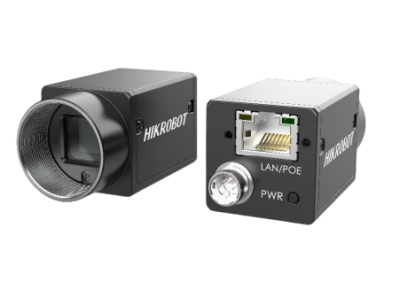

MV-CA013-A0G
1.3 MP Area Scan Camera
HIKROBOT
- Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT, Gamma correction, hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Details
Specifications
Type
CA Series
Resolution
1.3 MP
Frame Rate
92.8 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC - 24 VDC
PoE
PoE
Models
MV-CA013-A0GC
Color
MV-CA013-A0GM
Mono
Downloads
MV-CA013-A0GMC
