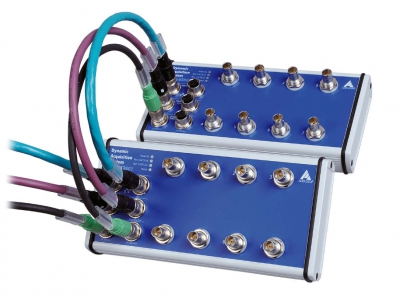

MSX-E3601

Ethernet Dynamic Signals System

ADDI-DATA GmbH

  • 8 or 2 Differential/Single-Ended Inputs
  • 8 or 2 Current Sources for IEPE/ICP Sensors
  • 24-bit Resolution
  • Simultaneous Sampling of Channels
  • 24 V Digital Trigger Input
  • 64 MB Onboard SDRAM for Data Storage
  • Robust Metal Housing

Specifications

Family
ADDI-DATA MSX
Unit Type
Standalone
Input Type
Voltage
ICP
Analog Inputs
2
8
Field Interface
Sync Pulse
Resolution
24-bit
Communication
Ethernet
Min Temperature
-40 °C
Max Temperature
85 °C
IP Rating
IP65

Models

MSX-E3601
8 SE/Differential Inputs, 24-bit Resolution
MSX-E3601-2
2 SE/Differential Inputs, 24-bit Resolution

Downloads

MSX-E3601 Ethernet Dynamic Signals System
Datasheet
