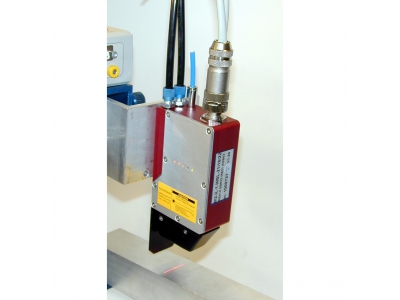

M2-iLAN-1

Compact Laser Scanner

Compact Laser Scanner
Integrated Controller
Rectangular Profile Housing
Connection:
Sampling Rate: 100 Hz
Laser Protection Class: 2 or 3R
Surface: White to Black, Shiny, High Mirroring

Specifications

Type

Laser

Full Scale

21 mm

Near Gap

63 mm

Output

Ethernet

Non-Linearity

±0.20 % FS

Resolution

0.021 mm

Excitation

8 - 30 V DC

IP Rating

IP64

Min Temperature

0 °C

Max Temperature

40 °C

Models

M2-iLAN-1

21mm Range, 63mm Near Gap Z, 21µm Resolution Z, 16mm/22mm Begin/End Range X, 38µm Resolution X

Downloads

M2-iLAN-1
